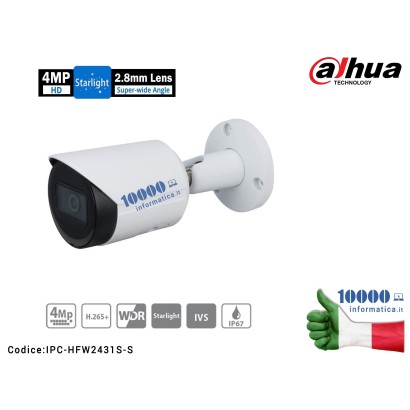

Telecamera IP da esterno ONVIF PoE Dahua IPC-HFW2431S S2 4MP 4 Megapixel, Ottica
Fissa 2.8mm, CMOS 1/3" con tecnologia STARLIGHT Compressione H.265. Video Analisi,
WDR 120dB, Day/Night (ICR), OSD, AWB, AGC, BLC, HLC, Slot MicroSD, ROI, Protezione
IP67, 3 AXIS. Dahua
Scheda tecnica
Scheda tecnica
Model IPC-HFW2431S-S (S2)
Camera
Image Sensor 1/3” CMOS
Effective Pixel 2688 (H) × 1520 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.01 Lux@F1.6
IR Distance 30 m (98.43 ft) (IR)
IR On/Off Control Auto/Manual
IR LEDs Number 1
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
lens
Lens Type Fixed
Mount Type M12
Focal Length 2.8 mm
Max. Aperture F1.6
Field of View Horizonal: 102.0°
Vertical: 55.0°
Diagonal: 121.0°
Iris Type Fixed
Close Focus Distance 0.9 m (2.95 ft)
Smart Event
General IVS Analytics Tripwire, Intrusion
Video
Video Compression H.265; H.264; H.264B; MJPEG
Smart Codec Yes
Video Frame Rate 50Hz
Main stream (2560 × 1440@25 fps); sub stream (704 × 576@25 fps)
Main stream (2688 × 1520@20 fps); sub stream (704 × 576@20 fps) 60Hz
Main stream (2560 × 1440@30 fps); sub stream (704 × 480@30 fps)
Main stream (2688 × 1520@20 fps); sub stream (704 × 480@20 fps)
Stream Capability Main stream; sub stream
Resolution 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296
(2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704
× 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 Kbps–6144 Kbps
H.265: 12 Kbps–6144 Kbps
Day/Night ICR switch
BLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Smart IR Yes
Image Rotation 0°/90°/180°/270° (Supports 90°/270° with 1080p resolution.)
Mirror Yes
Privacy Masking 4 areas
Network
Network RJ-45 (10/100 Base-T)
Protocol HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS;
PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP
Interoperability ONVIF (Profile S/Profile G); CGI; Milestone; Genetec
User/Host 20
Edge Storage Dahua Cloud; FTP; Micro SD card (max. 256 GB); NFS
Browser IE
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
Certification
Certifications CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL: UL60950-1 CAN
Power
Power Supply 12V DC/POE
Power Consumption Basic power consumption: 2.2W (12V DC), 2.7W (POE)
Max power consumption (H.265, Max resolution, Max stream, WDR, IR full intensity,
IVS): 4.2W (12V DC), 5W (POE)
Environment
Operating Conditions -40°C to +60°C (-40°F to +140°F)
Operating Humidity ≤95%
Storage Temperature -40°C to +60°C (-40°F to +140°F)
Protection Grade IP67
Structure
Casing Metal
Dimensions 166.2 mm × Φ70 mm (6.54" × Φ2.76")
Net Weight 0.48 kg (1.1 lb)
Gross Weight 0.57 kg (1.3 lb)
