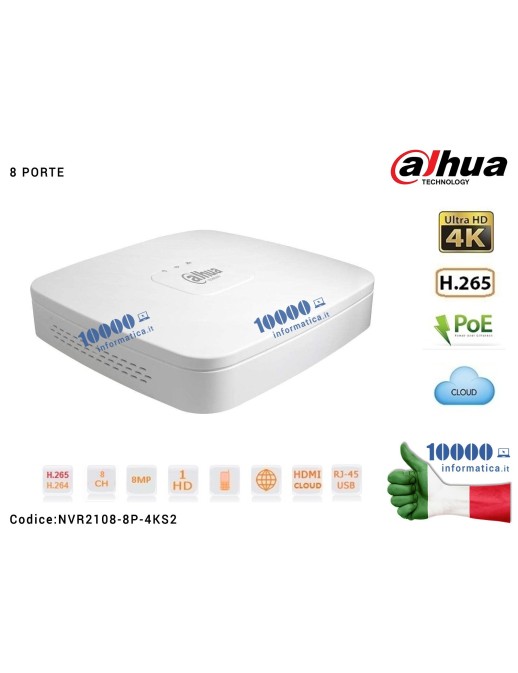

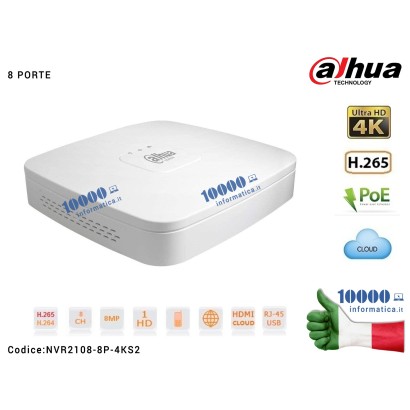

Videoregistratore NVR IP per la sorveglianza 8 Canali fino a 8Megapixel 4K ULTRA-HD, Max 80Mbps banda, Video Compressione H.265 / H.264, 1 HDMI, 1 VGA, Max 1HDD SATA 3.5", 2 Porte USB, 1 Ingresso + 1 Uscita Audio, 1 porta RJ-45 10/100Mbps. Compatibile ONVIF, Funzione ANR, Cloud P2P. 4 Porte PoE. Serie Lite. NVR2108-P-4KS2
Scheda tecnica
Model: DVR NVR2108-8P-4KS2
SYSTEM
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
VIDEO&AUDIO
IP Camera Input 8 Channel
Two-way talk 1 Channel Input, 1 Channel Output, RCA
DISPLAY
Interface 1 HDMI, 1 VGA
Resolution
HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720
VGA: 1920×1080, 1280×1024, 1280×720
Decoding Capacity 1ch@8MP 30fps, 4ch@1080P 30fps
Multiscreen display 1/4/8/9
OSD Camera title, Time, Camera lock, Motion detection, Recording
RECORDING
Compression H.265/H.264
Resolution
8MP/6MP/5MP/4MP/3MP/1080P/ 720P/ D1&etc.
Recording Rate 80Mbps
Bit Rate 16Kbps ~ 20Mbps Per Channel
Recording Mode Manual, Schedule(Regular(Continuous), MD, Stop
Recording Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
VIDEO DETECTION & ALARM
Trigger Events Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), and Tampering
Alarm Input N/A
Relay Output N/A
PLAYBACK & BACKUP
Playback Channel 1/4
Search Mode Time /Date, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
NETWORK
Ethernet 1 RJ-45 port (10/100/1000Mbps)
PoE 8 ports (IEEE802.3at/af)
Network Functions
HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search(Support Dahua IP camera, DVR, NVS and etc.), Easy4ip
Max User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4, SDK, CGI
HARD DISK
Internal HDD 1 SATA III Port, up to 6TB capacity for each HDD
HDD Mode Single
AUXILIARY INTERFACE
Usb Interface 2 ports (2 Rear USB2.0)
GENERAL
Power Supply Single, DC48V/2A
Power Consumption
NVR: <5.8W (without HDD)
PoE: Max 25.5w for single port, 80w in total
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Dimensions Smart 1U, 270mm×204.7mm×45.7mm (10.6" x 8.1" x 1.8")
Net Weight 0.65kg (1.43 lb) (without HDD)
Gross Weight 1.8kg(3.97 lb)(without HDD)
CERTIFICATIONS
CE EN55032, EN55024, EN50130-4, EN60950-1
FCC Part 15 Subpart B, ANSI C63.4-2014
UL UL60950-1
