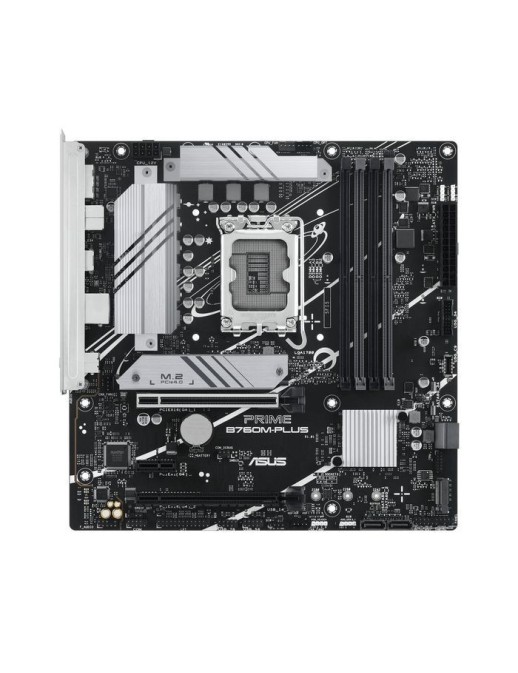

90MB1GY0-M0EAY0 Asus Prime B760M-Plus Intel B760 Lga 1700 Micro Atx









90MB1GY0-M0EAY0 Asus Prime B760M-Plus Intel B760 Lga 1700 Micro Atx

















BIOS BIOS memory size 128 Mbit BIOS type UEFI AMI Expansion slots Number of M.2 (M) slots 2 PCI Express x1 (Gen 4.x) slots 1 PCI Express x16 (Gen 4.x) slots 2 Caratteristiche Audio output channels 7.1 canali Component for PC Motherboard chipset Intel B760 Motherboard chipset family Intel Motherboard form factor micro ATX Windows operating systems supported Windows 10 x64/Windows 11 Graphics Parallel processing technology support Not supported Internal I/O 12V power connector Yes ATX Power connector (24-pin) Yes CPU fan connector Yes EPS power connector (8-pin) Yes Front panel audio connector Yes Number of chassis fan connectors 2 Number of COM connectors 1 Number of SATA III connectors 4 RGB LED pin header Yes S/PDIF out connector Yes TPM connector Yes USB 2.0 connectors 3 USB 3.2 Gen 1 (3.1 Gen 1) connectors 2 Legal Information UNSPSC Code (Icecat) 43201513 Memory ECC ?ompatibility Non-ECC Maximum internal memory 192 GB Memory channels Dual-channel Memory slots type DIMM Non-ECC Yes Number of memory slots 4 Supported memory clock speed (max) 7200 MHz Supported memory clock speeds 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz Supported memory types DDR5-SDRAM Unbuffered memory Yes Network Ethernet interface type 2.5 Gigabit Ethernet Ethernet LAN Yes Wi-Fi No Package dimensions Gross Weight (Package kg) 1,3 kg Packaging content Cables included SATA Screws included Yes Processor Compatible processor series Intel? Celeron?/Intel? Core? i3/Intel? Core? i5/Intel? Core? i7/Intel? Core? i9/Intel? Pentium? Gold Processor manufacturer Intel Processor socket LGA 1700 Supported processor sockets LGA 1700 Product dimensions Net Weight (Product kg) 1 kg Product Depth 24,4 cm Product Width 24,4 cm Rear panel I/O ports DisplayPorts quantity 1 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 Microphone in Yes PS/2 ports quantity 1 USB 2.0 ports quantity 4 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2 Storage controllers Number of storage drives supported 6 RAID levels 0/1/10/5 RAID support Yes Supported storage drive interfaces M.2/SATA III Supported storage drive types HDD & SSD ^ Brand Name Asus * 1 Anno(i) Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria Componenti di sistema Sottocategoria Schede madre
