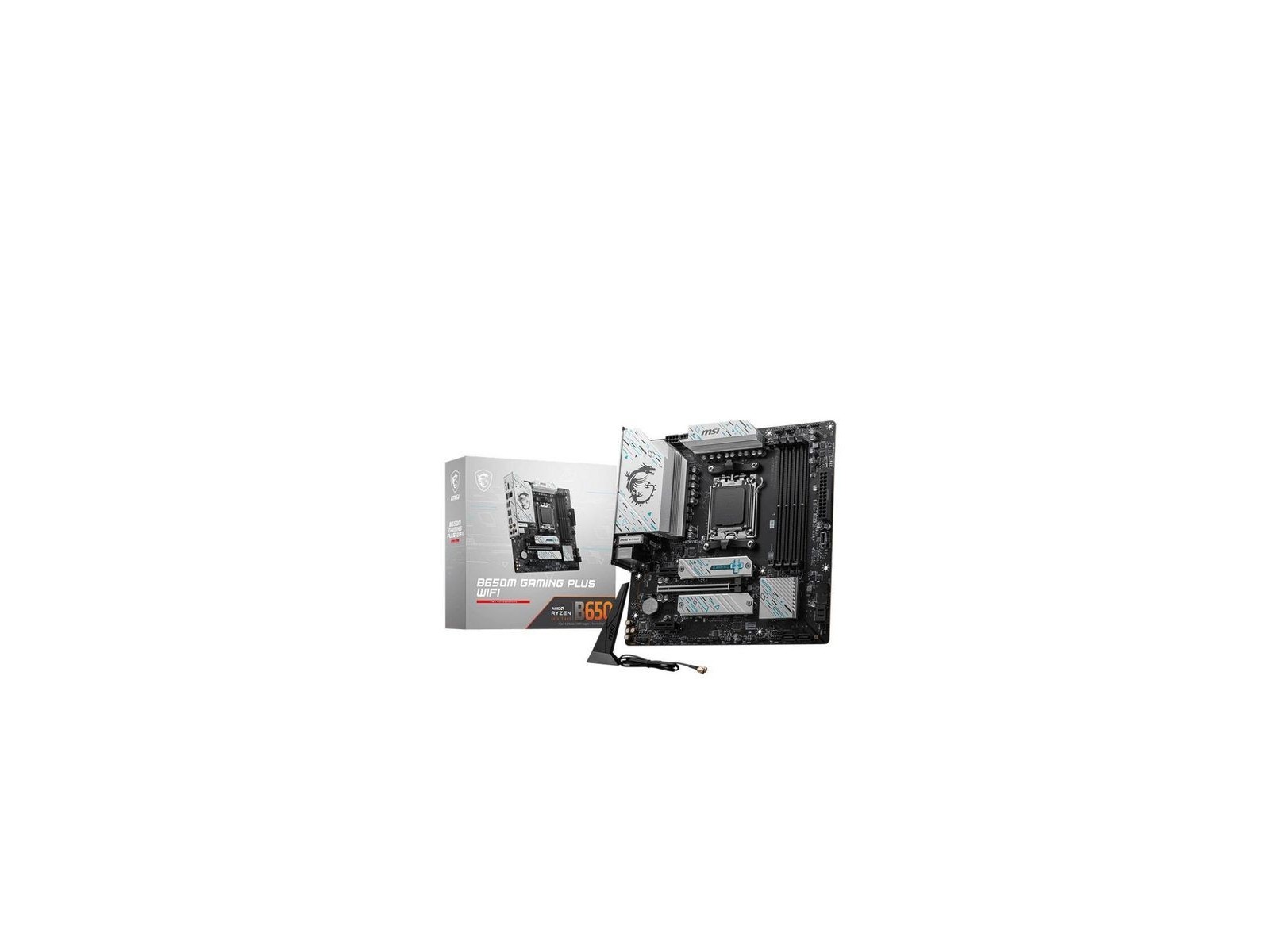

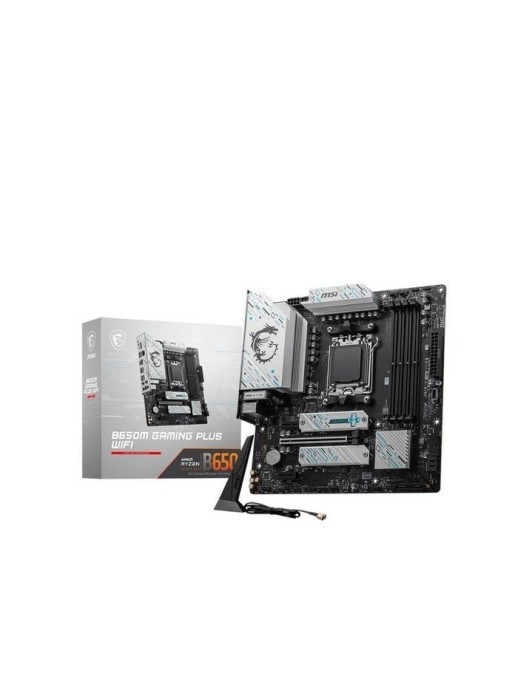

B650M GAMING PLUS WIFI MSI Motherboard Amd B650 Socket Am5 Micro Atx









B650M GAMING PLUS WIFI MSI Motherboard Amd B650 Socket Am5 Micro Atx

















BIOS ACPI version 6.4 BIOS memory size 256 Mbit BIOS type UEFI AMI System Management BIOS (SMBIOS) version 3.5 Expansion slots Number of M.2 (M) slots 2 Caratteristiche Audio chip Realtek ALC897 Audio output channels 7.1 canali Component for PC Motherboard chipset AMD B650 Motherboard chipset family AMD Motherboard form factor micro ATX Product colour Black Windows operating systems supported Windows 10 x64/Windows 11 x64 Graphics Parallel processing technology support Not supported Internal I/O Chassis intrusion connector Yes CPU fan connector Yes Front panel audio connector Yes Front panel connector Yes Number of SATA III connectors 4 RGB LED pin header Yes TPM connector Yes USB 2.0 connectors 4 USB 3.2 Gen 1 (3.1 Gen 1) connectors 2 USB 3.2 Gen 2 (3.1 Gen 2) connectors 1 Legal Information UNSPSC Code (Icecat) 43201513 Memory ECC No ECC ?ompatibility Non-ECC Maximum internal memory 192 GB Memory channels Dual-channel Non-ECC Yes Number of memory slots 4 Supported memory clock speed (max) 7200 MHz Supported memory clock speeds 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz Supported memory types DDR5-SDRAM Unbuffered memory Yes Network Bluetooth Yes Bluetooth version 5.3 Ethernet interface type 2.5 Gigabit Ethernet Ethernet LAN Yes Top Wi-Fi standard Wi-Fi 6E (802.11ax) Wi-Fi Yes Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax) Package dimensions Gross Weight (Package kg) 1,3 kg Packaging content Cables included SATA Processor Maximum internal memory supported by processor 192 GB Processor manufacturer AMD Processor socket Socket AM5 Supported processor sockets Socket AM5 Product dimensions Net Weight (Product kg) 1 kg Product Depth 24,38 cm Product Width 24,38 cm Rear panel I/O ports DisplayPort version 1.4 DisplayPorts quantity 1 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 HDMI version 2.1 S/PDIF out port Yes USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1 Storage controllers RAID levels 0/10/5 RAID support Yes Supported storage drive interfaces M.2/PCI Express Supported storage drive types HDD & SSD ^ Brand Name MSI * 1 Anno(i) Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria Componenti di sistema Sottocategoria Schede madre
