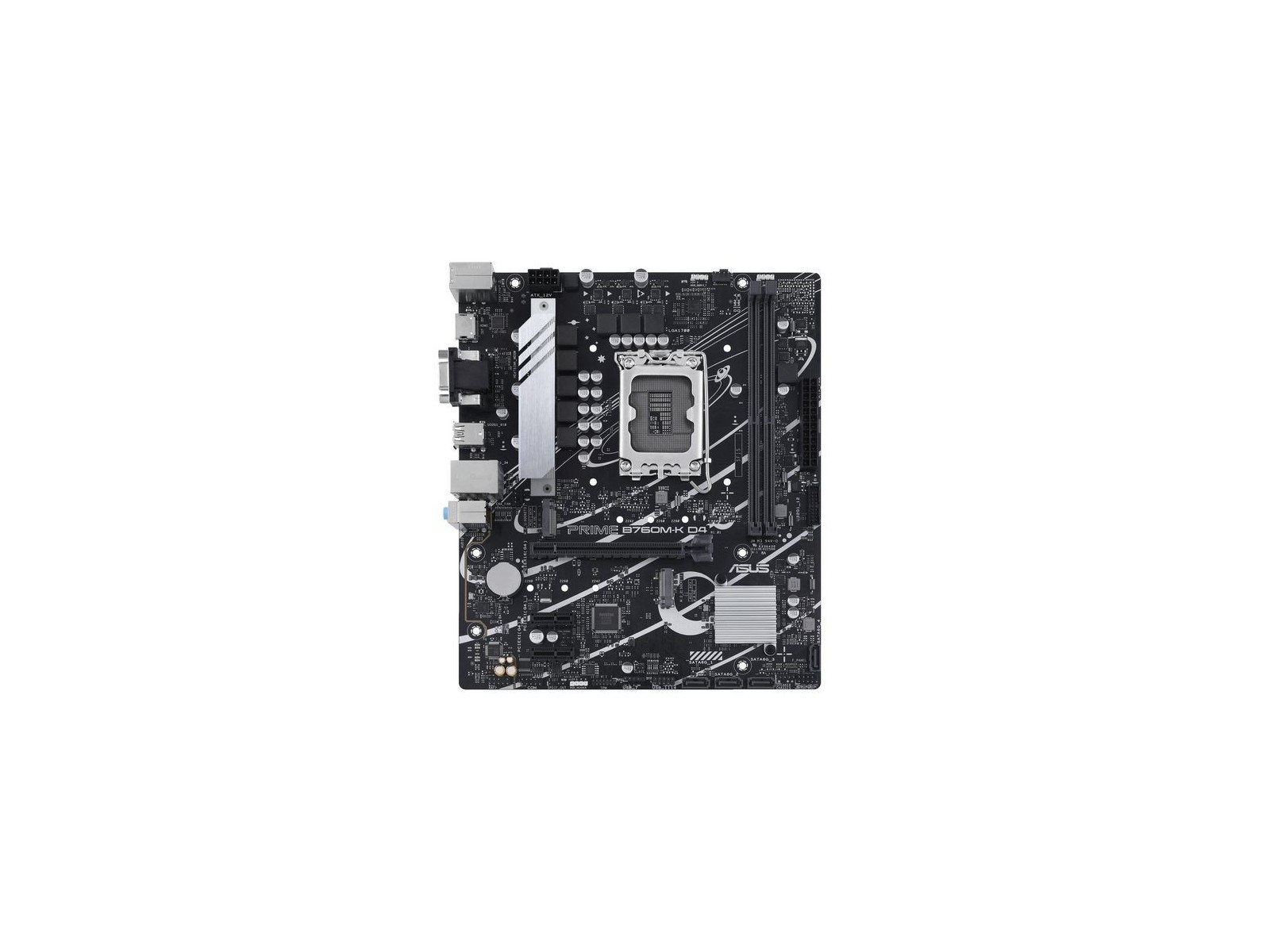

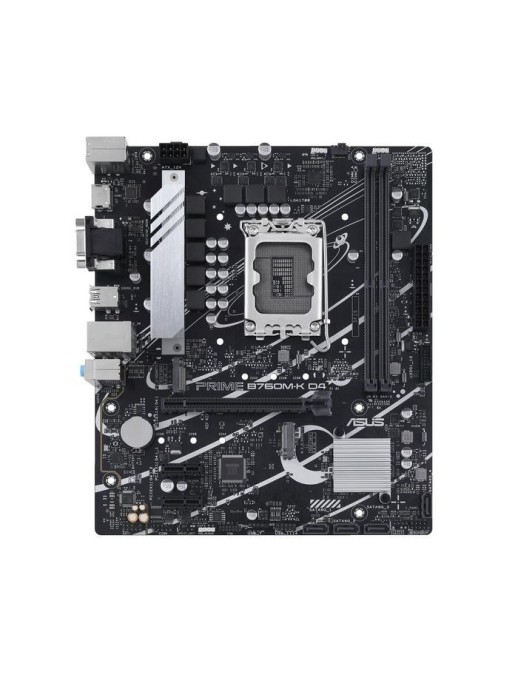

90MB1DS0-M1EAY0 Asus Prime B760M-K D4 Intel B760 Lga 1700 Micro Atx









90MB1DS0-M1EAY0 Asus Prime B760M-K D4 Intel B760 Lga 1700 Micro Atx

















BIOS BIOS memory size 128 Mbit BIOS type UEFI AMI Expansion slots Number of M.2 (M) slots 2 PCI Express x1 (Gen 4.x) slots 2 PCI Express x16 (Gen 4.x) slots 1 Caratteristiche Audio output channels 7.1 canali Component for PC Motherboard chipset Intel B760 Motherboard chipset family Intel Motherboard form factor micro ATX Windows operating systems supported Windows 10 x64/Windows 11 Graphics Parallel processing technology support Not supported Internal I/O 12V power connector Yes ATX Power connector (24-pin) Yes CPU fan connector Yes EPS power connector (8-pin) Yes Front panel audio connector Yes Number of chassis fan connectors 1 Number of COM connectors 1 Number of SATA III connectors 4 RGB LED pin header Yes S/PDIF out connector Yes TPM connector Yes USB 2.0 connectors 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 Legal Information UNSPSC Code (Icecat) 43201513 Memory ECC ?ompatibility Non-ECC Maximum internal memory 64 GB Memory channels Dual-channel Memory slots type DIMM Non-ECC Yes Number of memory slots 2 Supported memory clock speed (max) 5333 MHz Supported memory clock speeds 2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/4000/4266/4400/4600/4800/5000/5066/5333 MHz Supported memory types DDR4-SDRAM Unbuffered memory Yes Network Ethernet interface type 2.5 Gigabit Ethernet Ethernet LAN Yes Wake-on-LAN ready Yes Wi-Fi No Other Caratteristiche Weight 528 g Package dimensions Depth (package,cm) 5,15 cm Gross Weight (Package kg) 1,3 kg Height (package,cm) 26,3 cm Width (package,cm) 27 cm Packaging content Cables included SATA Processor Compatible processor series Intel? Celeron?/Intel? Core? i3/Intel? Core? i5/Intel? Core? i7/Intel? Core? i9/Intel? Pentium? Gold Processor manufacturer Intel Processor socket LGA 1700 Supported processor sockets LGA 1700 Product dimensions Net Weight (Product kg) 1 kg Product Depth 21,1 cm Product Height 3,6 cm Product Width 24,4 cm Rear panel I/O ports Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 Microphone in Yes PS/2 ports quantity 1 USB 2.0 ports quantity 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 USB connector type USB Type-A VGA (D-Sub) ports quantity 1 Storage controllers Number of HDDs supported 4 Number of storage drives supported 6 RAID levels 0/1/10/5 RAID support Yes Supported storage drive interfaces M.2/SATA III Supported storage drive types HDD & SSD ^ Brand Name Asus * 1 Anno(i) Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria Componenti di sistema Sottocategoria Schede madre
