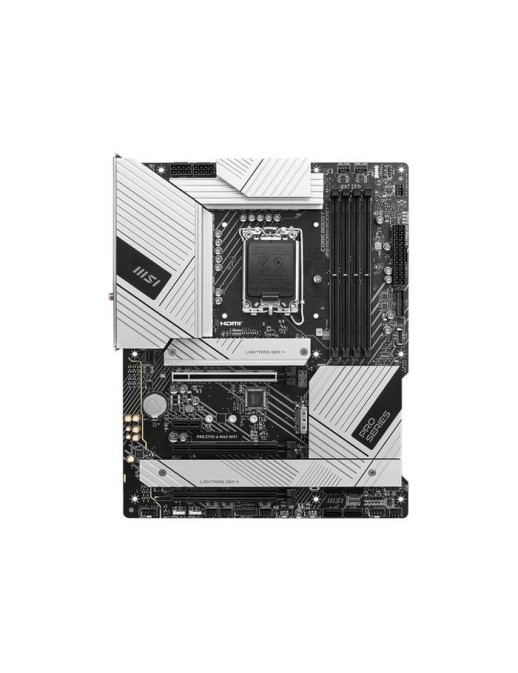

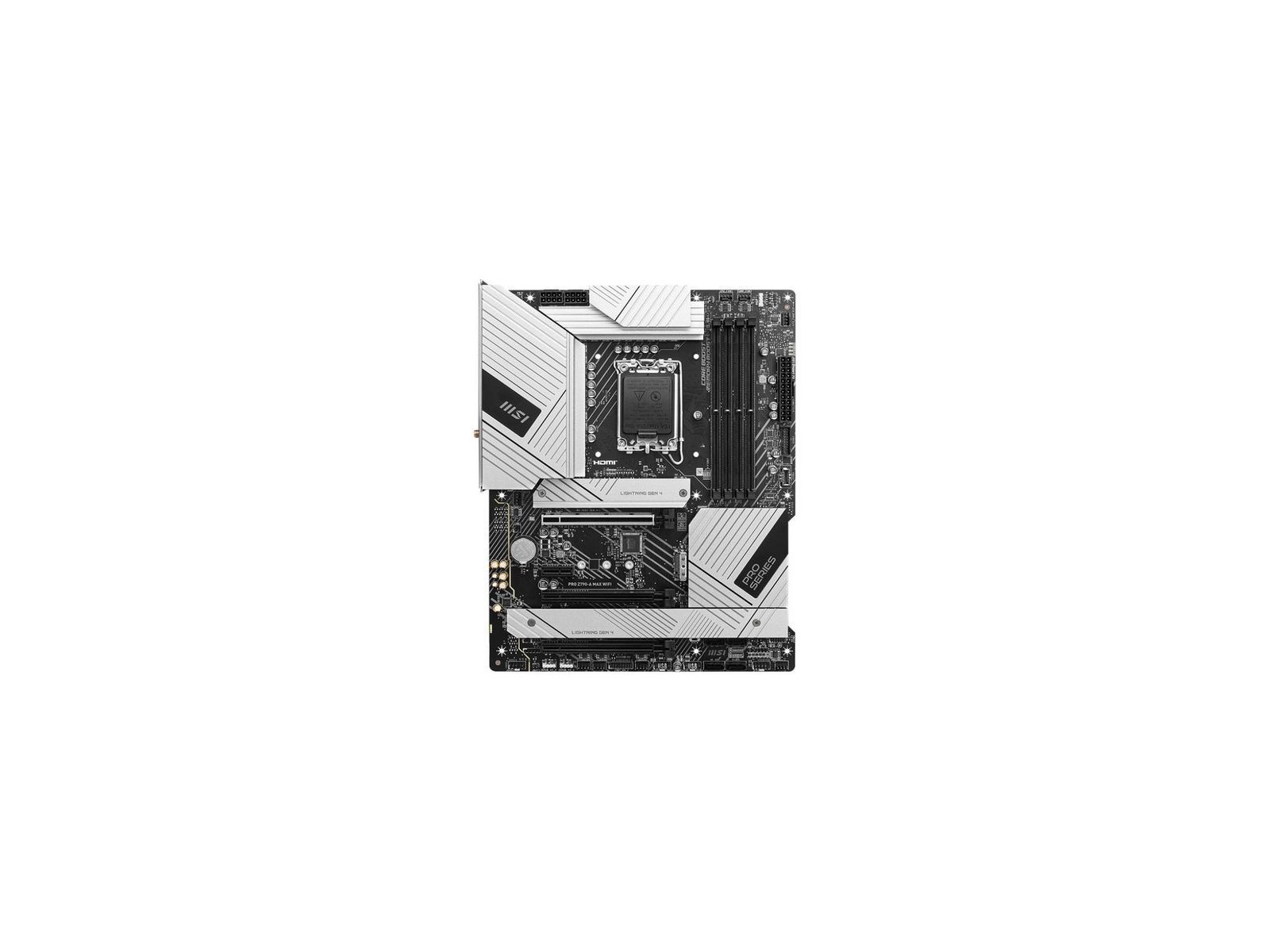

PRO Z790-A MAX WIFI MSI Motherboard Intel Z790 Lga 1700 Atx









PRO Z790-A MAX WIFI MSI Motherboard Intel Z790 Lga 1700 Atx









PRO Z790-A MAX WIFI offre un design semplice con un armonioso schema di colori argento che si abbina perfettamente alle build di PC bianche e nere. ? progettato con molte funzionalit? esclusive di MSI una comoda soluzione Wi-Fi 7 e ottimizzazione DDR5 per processori Intel® Core™ di 14a generazione e 13a generazione. Dissipatore di calore esteso Il dissipatore di calore esteso amplia la superficie di dissipazione del calore e mantiene le prestazioni con carichi pesanti. M.2 Shield Frozr La soluzione termica M.2 rinforzata aiuta a mantenere al sicuro l'SSD M.2 e garantisce prestazioni incredibili. Dissipatore di calore VRM placcato pesante Il dissipatore di calore VRM copre il MOS superiore e aiuta a dissipare il calore. Pad termico da 7 W/mK









Battery Battery Type UN3091 - Lithium METAL inside equiment Lithium Weight (g) 0,064 g BIOS BIOS memory size 256 Mbit BIOS type UEFI AMI Desktop Management Interface (DMI) version 6.4 System Management BIOS (SMBIOS) version 3.5 Expansion slots Number of M.2 (M) slots 4 PCI Express x1 slots 1 PCI Express x16 slots 3 Caratteristiche Audio output channels 7.1 canali Component for PC Motherboard chipset Intel Z790 Motherboard chipset family Intel Motherboard form factor ATX Product colour Aluminium/Black Windows operating systems supported Windows 10 x64/Windows 11 x64 Graphics On-board graphics card No Internal I/O Chassis intrusion connector Yes CPU fan connector Yes Front panel audio connector Yes Front panel connector Yes Number of SATA III connectors 6 RGB LED pin header Yes TPM connector Yes USB 2.0 connectors 4 USB 3.2 Gen 1 (3.1 Gen 1) connectors 2 USB 3.2 Gen 2 (3.1 Gen 2) connectors 1 Legal Information UNSPSC Code (Icecat) 43201513 Memory ECC ?ompatibility Non-ECC Maximum internal memory 128 GB Memory channels Dual-channel Non-ECC Yes Number of memory slots 4 Supported memory clock speed (max) 7200 MHz Supported memory clock speeds 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000 MHz Supported memory types DDR5-SDRAM Unbuffered memory Yes Network Bluetooth Yes Bluetooth version 5.3 Ethernet interface type 2.5 Gigabit Ethernet Ethernet LAN Yes Top Wi-Fi standard Wi-Fi 6 (802.11ax) Wi-Fi Yes Wi-Fi standards 802.11a/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax) Package dimensions Gross Weight (Package kg) 1,3 kg Packaging content Cables included SATA Processor Compatible processor series Intel? Celeron?/Intel? Pentium?/Intel? Pentium? Gold Processor manufacturer Intel Processor socket LGA 1700 Supported processor sockets LGA 1700 Product dimensions Net Weight (Product kg) 1 kg Product Depth 24,38 cm Product Width 30,48 cm Rear panel I/O ports DisplayPorts quantity 1 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 S/PDIF out port Yes USB 2.0 ports quantity 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3 USB 3.2 Gen 2x2 Type-C ports quantity 1 Storage controllers Number of storage drives supported 10 RAID levels 0/1/10/5 RAID support Yes Supported storage drive interfaces M.2/PCI Express Supported storage drive types HDD & SSD ^ Brand Name MSI * 1 Anno(i) Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria Componenti di sistema Sottocategoria Schede madre
