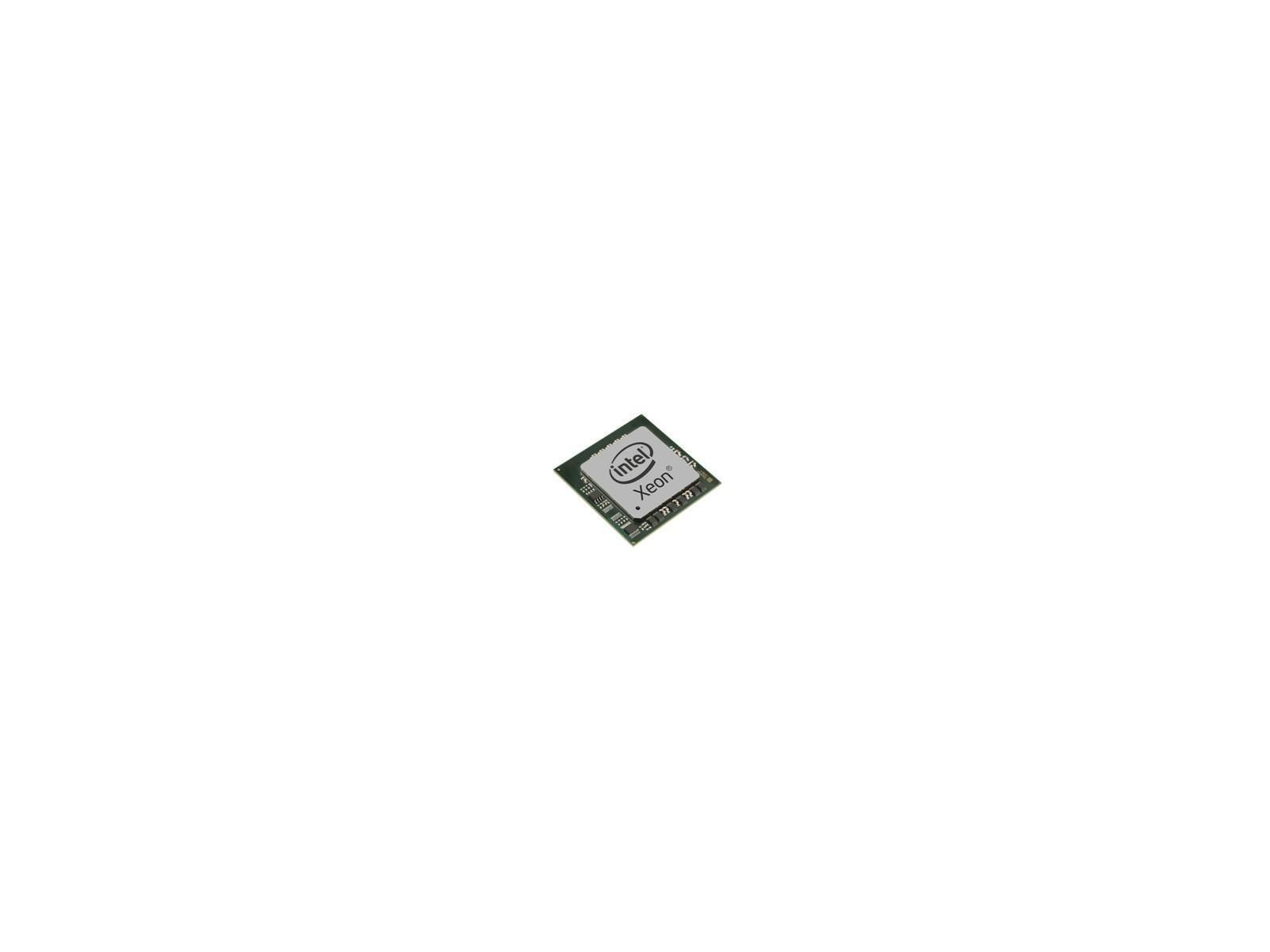

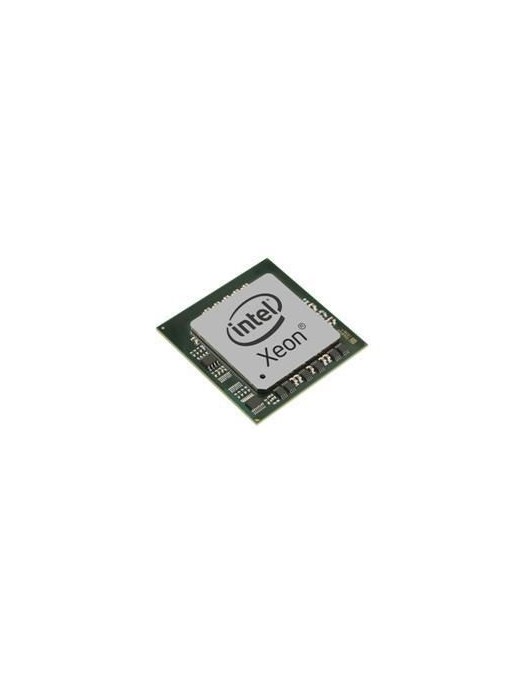

LF80550KG0644M-RFB Intel X7110/2,6 Ghz DC 4 MB cache CPU









LF80550KG0644M-RFB Intel X7110/2,6 Ghz DC 4 MB cache CPU

















Caratteristiche Commodity Classification Automated Tracking System (CCATS) NA Embedded options available No Execute Disable Bit Yes Export Control Classification Number (ECCN) 3A991.A.1 Idle States Yes Market segment Server Number of Processing Die Transistors 1328 M Processing Die size 435 mm? Legal Information UNSPSC Code (Icecat) 43201503 Logistics data Harmonized System (HS) code 8542310001 Operational conditions Tcase 60 ?C Package dimensions Gross Weight (Package kg) 0,13 kg Processor Box No Bus type FSB Component for Server/workstation Cooler included No CPU multiplier (bus/core ratio) 13 FSB Parity Yes L2 cache speed 2,6 GHz Processor ARK ID 27281 Processor base frequency 2,6 GHz Processor cache 4 MB Processor cache type L2 Processor code SL9Q9 Processor cores 2 Processor family Intel? Xeon? Processor front side bus 800 MHz Processor lithography 65 nm Processor manufacturer Intel Processor model 7110M Processor operating modes 64-bit Processor series Intel Xeon 7100 Series Processor socket Socket 604 (mPGA604) Processor threads 4 Stepping B0 Thermal Design Power (TDP) 95 Watt VID Voltage Range 1.1 - 1.35 V Processor special Caratteristiche Conflict-Free processor No Enhanced Intel SpeedStep Technology Yes Intel 64 Yes Intel Demand Based Switching No Intel Enhanced Halt State Yes Intel Trusted Execution Technology No Intel Virtualization Technology (VT-x) Yes Intel? Hyper Threading Technology (Intel? HT Technology) Yes Intel? Turbo Boost Technology No Product dimensions Net Weight (Product kg) 0,1 kg Technical details Bus bandwidth 800 Bus speed 800 MHz Bus type units MHz Last change 63903513 Processor brand name Intel Xeon Processor cache 4096 KB Product family Intel Xeon Processor 7000 Sequence Product type Processor Status Discontinued ^ Brand Name Intel * 1 Anno(i) Weight & dimensions Processor package size 53.3mm x 53.3mm mm Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria Componenti di sistema Sottocategoria CPU
