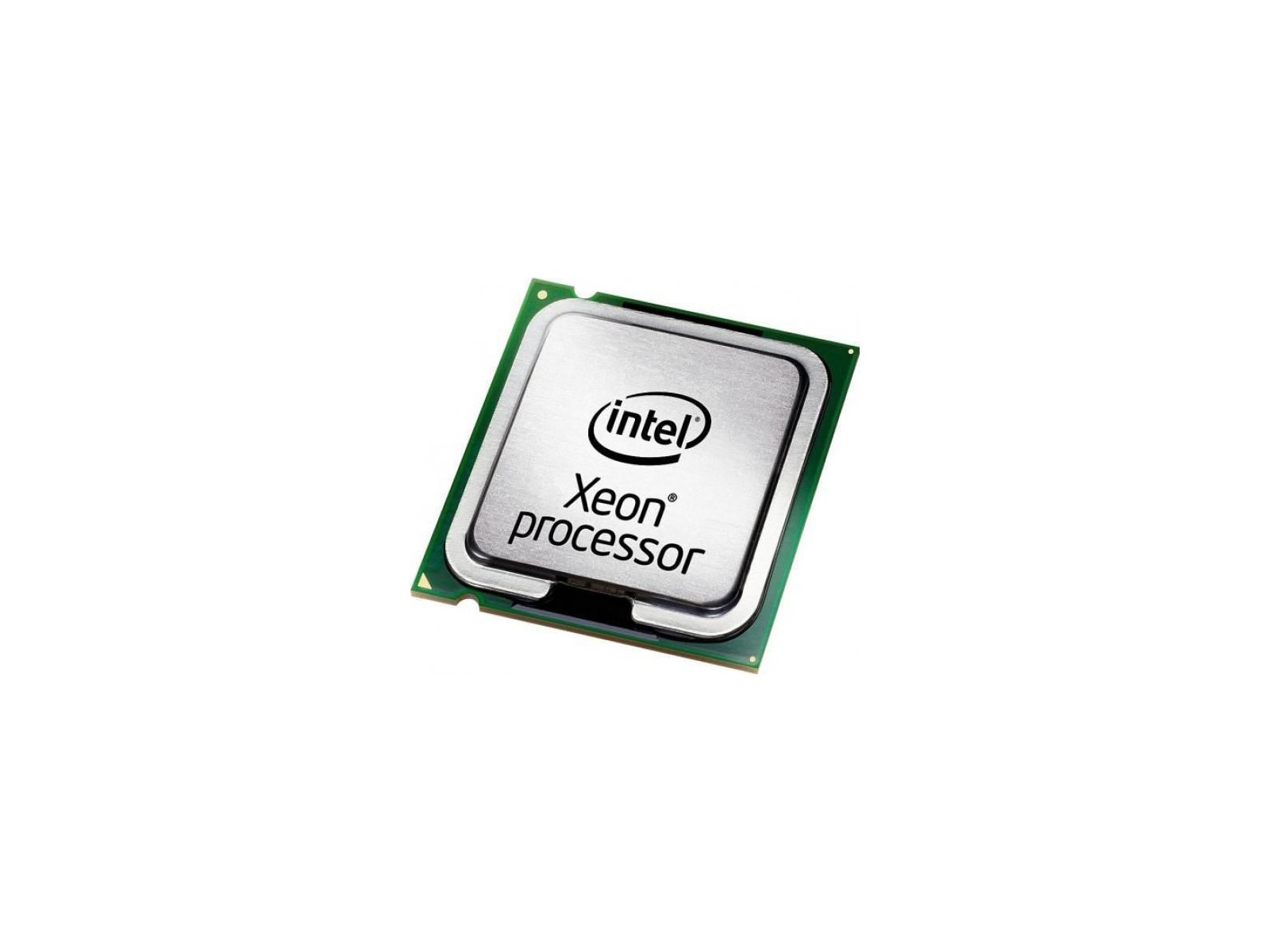

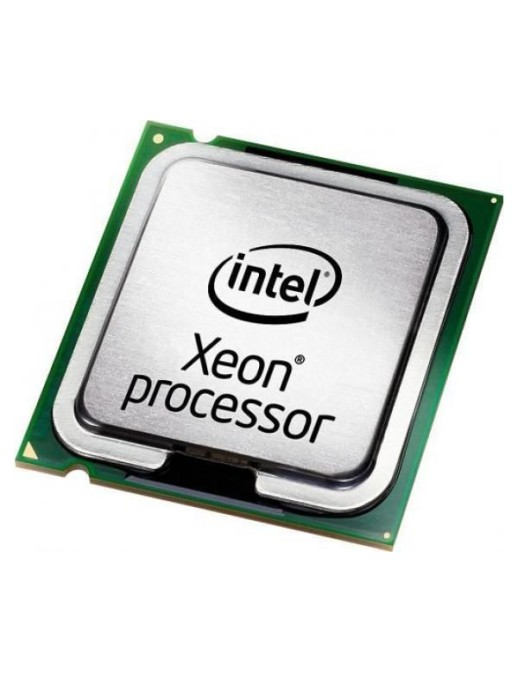

CM8063501292405-RFB Intel Intel QC Xeon E5-1620 V2 3.70Ghz 10.









CM8063501292405-RFB Intel Intel QC Xeon E5-1620 V2 3.70Ghz 10.

















Caratteristiche Commodity Classification Automated Tracking System (CCATS) G077159 CPU configuration (max) 1 Embedded options available No Execute Disable Bit Yes Export Control Classification Number (ECCN) 5A992C Idle States Yes Market segment Server Maximum number of PCI Express lanes 40 PCI Express CEM revision 3.0 PCI Express configurations x16/x4/x8 PCI Express slots version 3.0 Scalability 1S Supported instruction sets AVX Thermal Monitoring Technologies Yes Graphics On-board graphics card No Legal Information UNSPSC Code (Icecat) 43201503 Logistics data Harmonized System (HS) code 8542310001 Memory ECC Yes Maximum internal memory supported by processor 256 GB Memory channels Quad-channel Memory clock speeds supported by processor 1066/1333/1600/1866/800 MHz Memory types supported by processor DDR3-SDRAM Operational conditions Tcase 70 ?C Other Caratteristiche Cache memory 10 MB Intel? Virtualization Technology (Intel? VT) VT-d/VT-x Maximum internal memory 256 GB Maximum internal memory 262144 MB On-board memory controller Yes Package dimensions Gross Weight (Package kg) 0,13 kg Processor Box No Bus type QPI Component for Server/workstation Cooler included No Memory bandwidth supported by processor (max) 59,7 GB/s Processor ARK ID 75779 Processor base frequency 3,7 GHz Processor boost frequency 3,9 GHz Processor cache 10 MB Processor cache type Smart Cache Processor codename Ivy Bridge EP Processor cores 4 Processor family Intel? Xeon? E5 Family Processor lithography 22 nm Processor manufacturer Intel Processor model E5-1620V2 Processor operating modes 64-bit Processor series Intel Xeon E5-1600 v2 Processor socket LGA 2011 (Socket R) Processor threads 8 Thermal Design Power (TDP) 130 Watt VID Voltage Range 0.65 - 1.3 V Processor special Caratteristiche Conflict-Free processor No Enhanced Intel SpeedStep Technology Yes Intel 64 Yes Intel Demand Based Switching Yes Intel Enhanced Halt State Yes Intel Flex Memory Access No Intel Identity Protection Technology version 0.00 Intel Secure Key Technology version 1.00 Intel Trusted Execution Technology Yes Intel TSX-NI No Intel TSX-NI version 0.00 Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel? AES New Instructions (Intel? AES-NI) Yes Intel? Hyper Threading Technology (Intel? HT Technology) Yes Intel? Identity Protection Technology (Intel? IPT) No Intel? OS Guard Yes Intel? Secure Key Yes Intel? Smart Cache Yes Intel? Transactional Synchronization Extensions No Intel? Turbo Boost Technology 2.0 Intel? Turbo Boost Technology 2.0 frequency 3,9 GHz Intel? vPro? Platform Eligibility Yes Product dimensions Net Weight (Product kg) 0,1 kg Technical details Born on date Q3'13 Bus speed 0 GT/s Bus type units GT/s Last change 63903513 Launch date Q3'13 Maximum memory 256 GB Processor brand name Intel Xeon v2 Processor cache 10240 KB Processor core voltage 0.65?1.30 V Product family Intel Xeon Processor E5 v2 Family Product name Intel Xeon E5-1620 v2 (10M Cache 3.70 GHz) Product type Processor Status Launched Supported memory types DDR3-SDRAM ^ Brand Name Intel * 1 Anno(i) Weight & dimensions Processor package size 52.5mm x 45mm mm Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria Componenti di sistema Sottocategoria CPU
