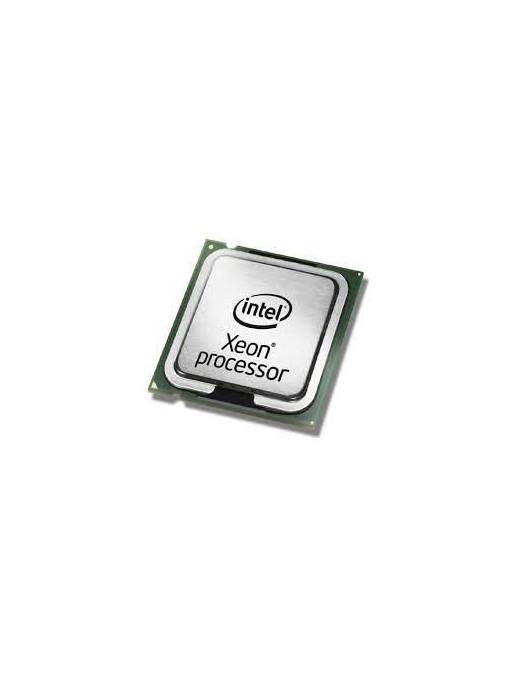

00J6384-RFB Lenovo Intel Xeon Processor E5-2430 v2 6C 2.5GHz 15MB Cache 1600MHz 80W









00J6384-RFB Lenovo Intel Xeon Processor E5-2430 v2 6C 2.5GHz 15MB Cache 1600MHz 80W

















Caratteristiche Embedded options available Yes Execute Disable Bit Yes Idle States Yes Market segment Server PCI Express slots version 3.0 Scalability 2S Thermal Monitoring Technologies Yes Graphics On-board graphics card No Legal Information UNSPSC Code (Icecat) 43201503 Memory ECC Yes Maximum internal memory supported by processor 384 GB Memory channels Triple-channel Memory clock speeds supported by processor 1066/1333/1600/800 MHz Memory types supported by processor DDR3-SDRAM Other Caratteristiche Intel? Virtualization Technology (Intel? VT) VT-d/VT-x Package dimensions Gross Weight (Package kg) 0,12 kg Processor Bus type QPI Component for Server/workstation Memory bandwidth supported by processor (max) 38,4 GB/s Number of QPI links 1 Processor base frequency 2,5 GHz Processor boost frequency 3 GHz Processor cache 15 MB Processor cache type L3 Processor cores 6 Processor family Intel? Xeon? E5 V2 Family Processor lithography 22 nm Processor model E5-2430V2 Processor operating modes 32-bit/64-bit Processor socket LGA 1356 (Socket B2) Processor threads 12 System bus rate 7,2 GT/s Thermal Design Power (TDP) 80 Watt VID Voltage Range 0.65 - 1.30 V Processor special Caratteristiche Enhanced Intel SpeedStep Technology Yes Intel Demand Based Switching Yes Intel Flex Memory Access No Intel Trusted Execution Technology Yes Intel TSX-NI No Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel? AES New Instructions (Intel? AES-NI) Yes Intel? Hyper Threading Technology (Intel? HT Technology) Yes Intel? Identity Protection Technology (Intel? IPT) No Intel? Secure Key Yes Intel? Smart Cache Yes Intel? Turbo Boost Technology 2.0 Product dimensions Net Weight (Product kg) 0,1 kg ^ Brand Name Lenovo * 1 Anno(i) Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria Componenti di sistema Sottocategoria CPU
