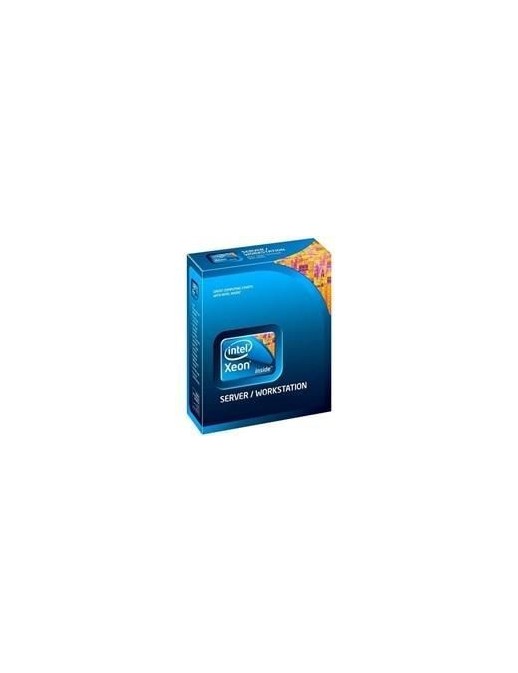

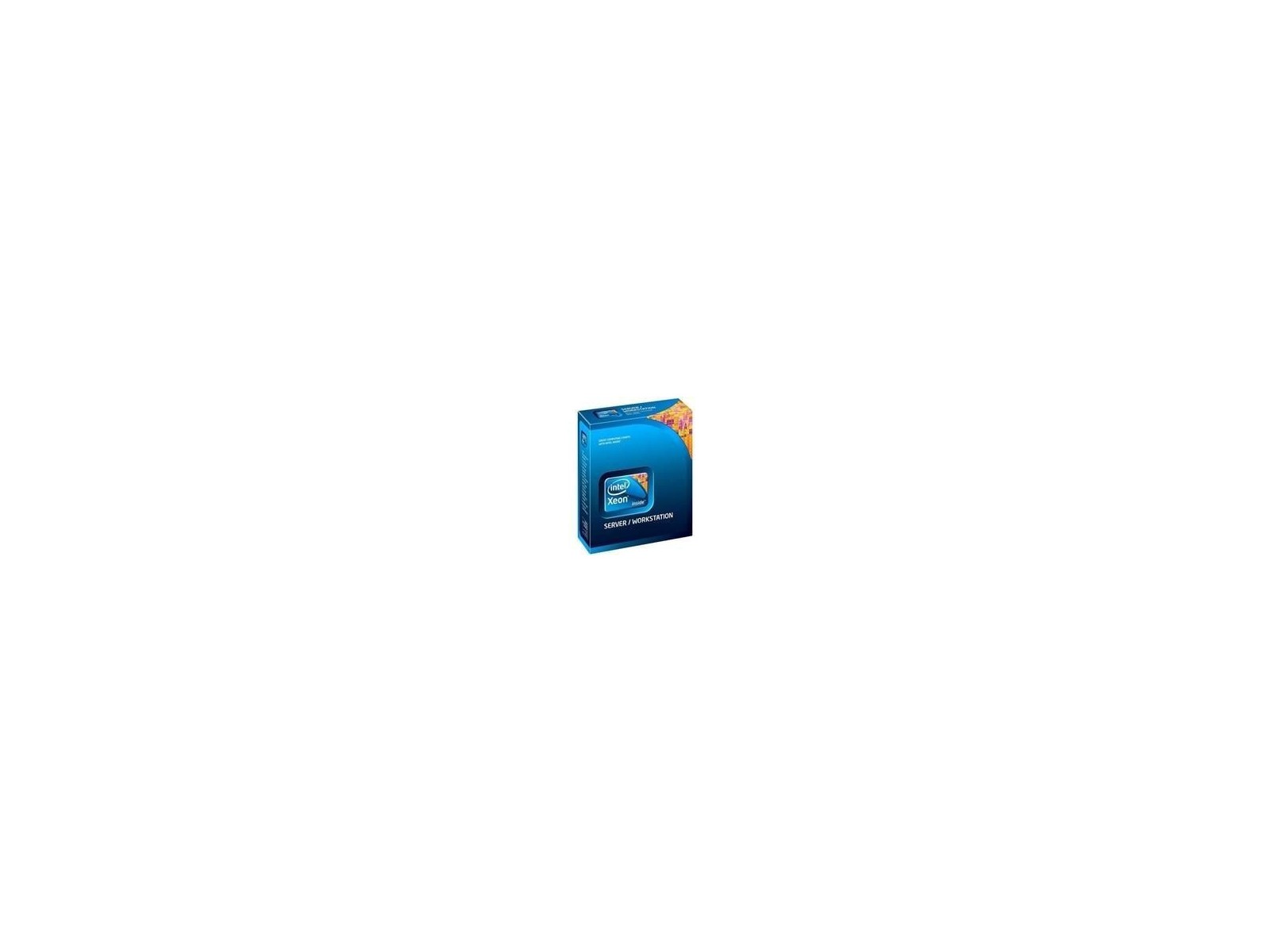

338-BJWC-RFB Dell Intel E7-8870V4 2.10GHz 20C 50M 140W









338-BJWC-RFB Dell Intel E7-8870V4 2.10GHz 20C 50M 140W

















Caratteristiche CPU configuration (max) 8 Embedded options available No Execute Disable Bit Yes Idle States Yes Market segment Server Maximum number of PCI Express lanes 32 PCI Express CEM revision 3.0 PCI Express configurations 1x16/1x4/1x8 PCI Express slots version 3.0 Physical Address Extension (PAE) 46 bit Physical Address Extension (PAE) Yes Scalability S8S Supported instruction sets AVX 2.0 Thermal Monitoring Technologies Yes Graphics Discrete graphics card No Discrete graphics card model Not available On-board graphics card No On-board graphics card model Not available Legal Information UNSPSC Code (Icecat) 43201503 Logistics data Harmonized System (HS) code 8542310001 Memory ECC Yes Maximum internal memory supported by processor 3 TB Memory channels Quad-channel Memory clock speeds supported by processor 1066/1333/1600/1866 MHz Memory types supported by processor DDR3-SDRAM/DDR4-SDRAM Operational conditions Tcase 76 ?C Other Caratteristiche Compatibility - PowerEdge R930 Maximum internal memory 3145728 MB Package dimensions Gross Weight (Package kg) 0,12 kg Processor Bus type QPI Component for Server/workstation Memory bandwidth supported by processor (max) 85 GB/s Number of QPI links 3 Processor ARK ID 93801 Processor base frequency 2,1 GHz Processor boost frequency 3 GHz Processor cache 50 MB Processor cache type Smart Cache Processor code SR2S1 Processor codename Broadwell Processor cores 20 Processor family Intel Xeon E7 v4 Processor lithography 14 nm Processor model E7-8870V4 Processor operating modes 64-bit Processor series Intel Xeon E7-8800 v4 Processor socket LGA 2011 (Socket R) Processor threads 40 Stepping B0 System bus rate 9,6 GT/s Thermal Design Power (TDP) 140 Watt Processor special Caratteristiche Conflict-Free processor Yes Enhanced Intel SpeedStep Technology Yes Intel 64 Yes Intel Enhanced Halt State Yes Intel Instruction Replay Technology No Intel Instruction Replay Technology version 0.00 Intel Secure Key Technology version 1.00 Intel Trusted Execution Technology Yes Intel TSX-NI Yes Intel TSX-NI version 1.00 Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel? AES New Instructions (Intel? AES-NI) Yes Intel? Hyper Threading Technology (Intel? HT Technology) Yes Intel? OS Guard Yes Intel? Secure Key Yes Intel? Turbo Boost Technology 2.0 Product dimensions Net Weight (Product kg) 0,1 kg Technical details Bus bandwidth 9,6 Bus speed 9.6 GT/s Bus type units GT/s Last change 63903513 Launch date Q2'16 Processor brand name Intel Xeon Processor cache 51200 KB Product family Intel Xeon Processor E7 v4 Family Product type Processor Status Launched ^ Brand Name Dell * 1 Anno(i) Weight & dimensions Processor package size 45 x 52.5 mm Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria Componenti di sistema Sottocategoria CPU
