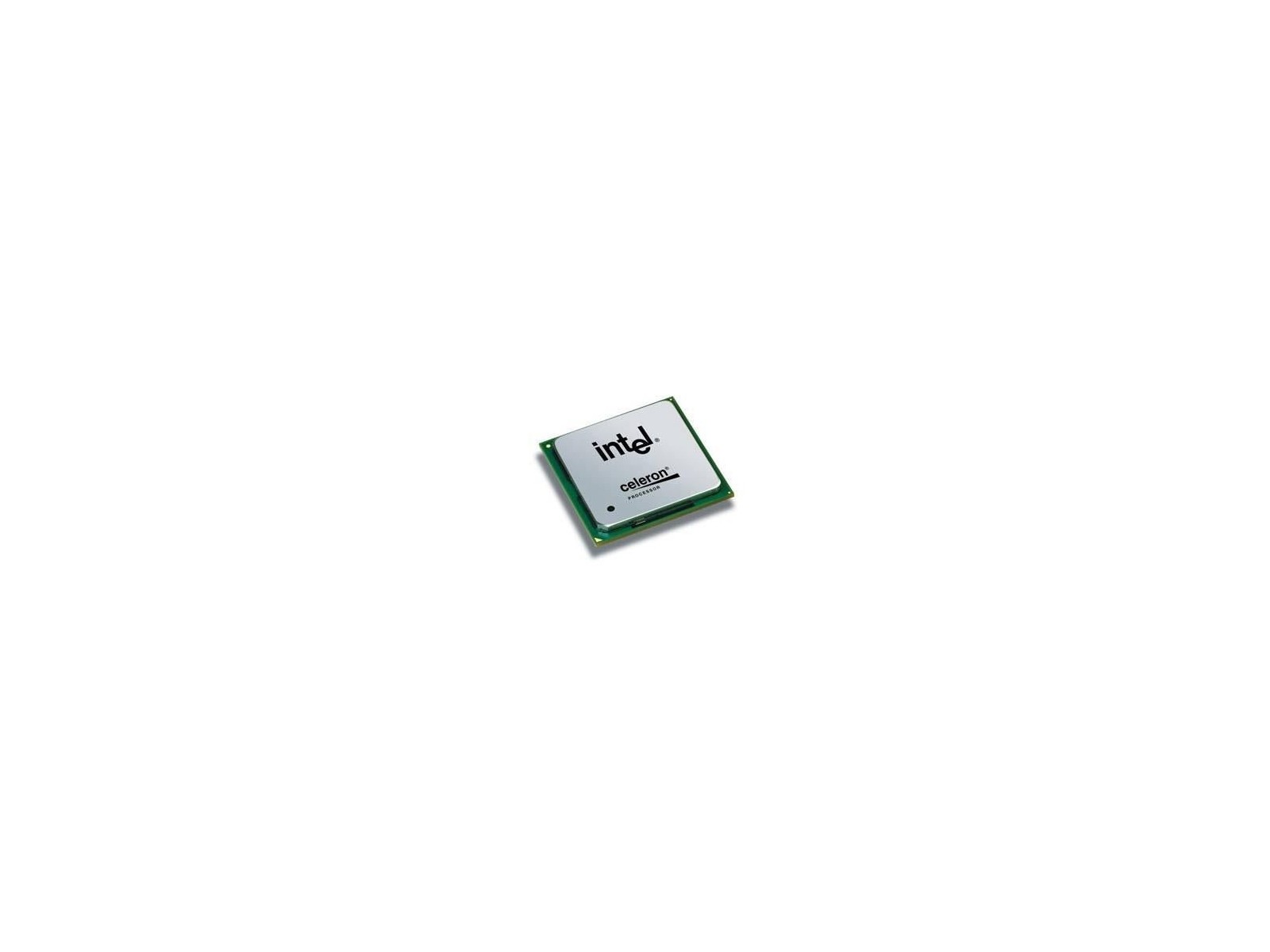

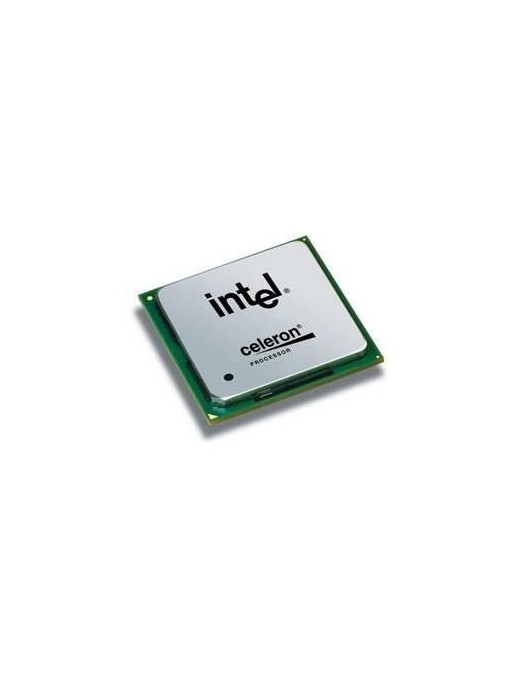

CM8064601483406 Intel Celeron G1850 Processor 2.9 Ghz 2 Mb L3









CM8064601483406 Intel Celeron G1850 Processor 2.9 Ghz 2 Mb L3

















Battery Battery Type NONE - Only use for non-battery items Caratteristiche Commodity Classification Automated Tracking System (CCATS) NA CPU configuration (max) 1 Embedded options available No Execute Disable Bit Yes Export Control Classification Number (ECCN) 3A991 Graphics & IMC lithography 22 nm Idle States Yes Market segment Desktop Maximum number of PCI Express lanes 16 PCI Express configurations 1x16/1x8+2x4/2x8 PCI Express slots version 3.0 Scalability 1S Supported instruction sets SSE4.1/SSE4.2 Thermal Monitoring Technologies Yes Thermal solution specification PCG 2013C Graphics Maximum on-board graphics card memory 1,7 GB Number of displays supported (on-board graphics) 3 On-board graphics card Yes On-board graphics card base frequency 350 MHz On-board graphics card DirectX version 11.1/12 On-board graphics card dynamic frequency (max) 1050 MHz On-board graphics card maximum resolution (DisplayPort) 2560 x 1600 Pixels On-board graphics card maximum resolution (eDP - Integrated Flat Panel) 2560 x 1600 Pixels On-board graphics card maximum resolution (HDMI) 1920 x 1080 Pixels On-board graphics card maximum resolution (VGA) 1920 x 1200 Pixels On-board graphics card memory 1,7 GB On-board graphics card model Intel? HD Graphics On-board graphics card OpenGL version 4.3 On-board graphics card outputs supported DisplayPort/DVI/Embedded DisplayPort (eDP)/HDMI/VGA (D-Sub) On-board graphics card refresh rate at maximum resolution (DisplayPort) 60 Hz On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) 60 Hz On-board graphics card refresh rate at maximum resolution (HDMI) 60 Hz On-board graphics card refresh rate at maximum resolution (VGA) 60 Hz Legal Information UNSPSC Code (Icecat) 43201503 Logistics data Harmonized System (HS) code 8542310001 Memory ECC Yes Maximum internal memory supported by processor 32 GB Memory channels Dual-channel Memory clock speeds supported by processor 1333 MHz Memory types supported by processor DDR3-SDRAM/DDR3L-SDRAM Operational conditions Tcase 72 ?C Other Caratteristiche Graphics output eDP/DP/HDMI/DVI/VGA Intel? Virtualization Technology (Intel? VT) VT-x Maximum internal memory 32768 MB Maximum internal memory 32 GB Package dimensions Gross Weight (Package kg) 1,16 kg Processor Box No Bus type DMI2 Component for PC Cooler included No Memory bandwidth supported by processor (max) 21,3 GB/s Processor ARK ID 80798 Processor base frequency 2,9 GHz Processor cache 2 MB Processor cache type L3 Processor codename Haswell Processor cores 2 Processor family Intel? Celeron? Processor lithography 22 nm Processor manufacturer Intel Processor model G1850 Processor operating modes 64-bit Processor socket LGA 1150 (Socket H3) Processor threads 2 Stepping C0 System bus rate 5 GT/s Thermal Design Power (TDP) 53 Watt Processor special Caratteristiche Conflict-Free processor Yes Enhanced Intel SpeedStep Technology Yes Intel 64 Yes Intel Enhanced Halt State Yes Intel Secure Key Technology version 1.00 Intel Stable Image Platform Program (SIPP) No Intel Stable Image Platform Program (SIPP) version 0 Intel Trusted Execution Technology No Intel TSX-NI No Intel TSX-NI version 0.00 Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) No Intel VT-x with Extended Page Tables (EPT) Yes Intel? AES New Instructions (Intel? AES-NI) No Intel? Clear Video HD Technology (Intel? CVT HD) Yes Intel? Hyper Threading Technology (Intel? HT Technology) No Intel? Optane? Memory Ready No Intel? Quick Sync Video Technology Yes Intel? Secure Key Yes Intel? Transactional Synchronization Extensions No Intel? Turbo Boost Technology No Intel? vPro? Platform Eligibility No Intel? Wireless Display (Intel? WiDi) Yes Product dimensions Net Weight (Product kg) 0,89 kg Technical details Bus bandwidth 5 Bus speed 5 GT/s Bus type units GT/s Last change 63903513 Launch date Q2'14 Maximum graphics card memory 1,7 GB Maximum memory 32 GB Maximum resolution & refresh rate (DisplayPort) 2560x1600@60Hz Maximum resolution & refresh rate (HDMI) 1920x1080@60Hz Maximum resolution & refresh rate (Integrated Flat Panel) 2560x1600@60Hz Maximum resolution & refresh rate (VGA) 1920x1200@60Hz Number of graphics cores 10 Processor brand name Intel Celeron Processor cache 2048 KB Product family Intel Celeron Processor Product type Processor Status Discontinued Supported memory types DDR3-SDRAM/DDR3L-SDRAM ^ Brand Name Intel * 1 Anno(i) Weight & dimensions Processor package size 37.5 x 37.5 mm Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria Componenti di sistema Sottocategoria CPU
