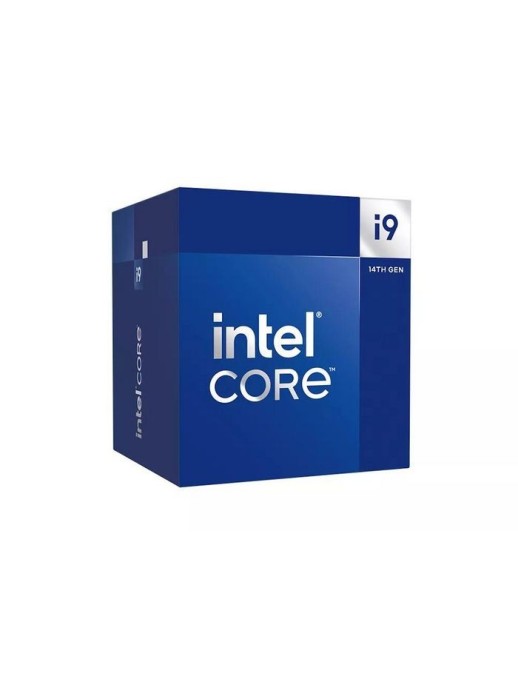

BX8071514900 Intel Core I9-14900 Processor 36 Mb Smart Cache Box









BX8071514900 Intel Core I9-14900 Processor 36 Mb Smart Cache Box

















Caratteristiche Commodity Classification Automated Tracking System (CCATS) 740.17B1 CPU configuration (max) 1 Direct Media Interface (DMI) Revision 4.0 Embedded options available Yes Execute Disable Bit Yes Export Control Classification Number (ECCN) 5A992C Idle States Yes Market segment Desktop Maximum number of PCI Express lanes 20 PCI Express configurations 1x16+1x4/2x8+1x4 PCI Express slots version 4.0/5.0 Scalability 1S Supported instruction sets AVX 2.0/SSE4.1/SSE4.2 Thermal Monitoring Technologies Yes Use conditions PC/Client/Tablet/Workstation Graphics Discrete graphics card No Discrete graphics card model Not available Multi-Format Codec Engines 2 Number of displays supported (on-board graphics) 4 Number of execution units 32 On-board graphics card Yes On-board graphics card base frequency 300 MHz On-board graphics card DirectX version 12.0 On-board graphics card dynamic frequency (max) 1650 MHz On-board graphics card maximum resolution (DisplayPort) 7680 x 4320 Pixels On-board graphics card maximum resolution (eDP - Integrated Flat Panel) 5120 x 3200 Pixels On-board graphics card maximum resolution (HDMI) 4096 x 2160 Pixels On-board graphics card model Intel UHD Graphics 770 On-board graphics card OpenGL version 4.5 On-board graphics card outputs supported DisplayPort 1.4a/Embedded DisplayPort (eDP) 1.4b/HDMI 2.1 On-board graphics card refresh rate at maximum resolution (DisplayPort) 60 Hz On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) 120 Hz On-board graphics card refresh rate at maximum resolution (HDMI) 60 Hz Legal Information UNSPSC Code (Icecat) 43201503 Logistics data Harmonized System (HS) code 8542310001 Memory ECC Yes Maximum internal memory supported by processor 192 GB Memory bandwidth (max) 89,6 GB/s Memory channels Dual-channel Memory types supported by processor DDR4-SDRAM/DDR5-SDRAM Operational conditions Tjunction 100 ?C Other Caratteristiche Graphics output eDP 1.4b DP 1.4a HDMI 2.1 L2 cache 32768 KB Maximum internal memory 192 GB Package dimensions Gross Weight (Package kg) 1,16 kg Processor Box Yes Cooler included Yes Efficient cores 16 Efficient-core base frequency 1,5 GHz Efficient-core boost frequency 4,3 GHz Maximum number of DMI lanes 8 Maximum turbo power 219 Watt Memory bandwidth supported by processor (max) 89,6 GB/s Performance cores 8 Performance-core base frequency 2 GHz Performance-core boost frequency 5,4 GHz Processor ARK ID 236793 Processor base power 65 Watt Processor boost frequency 5,8 GHz Processor cache 36 MB Processor cache type Smart Cache Processor codename Raptor Lake Processor cores 24 Processor family Intel? Core? i9 Processor generation Intel? Core? i9 (14th gen) Processor manufacturer Intel Processor model i9-14900 Processor operating modes 64-bit Processor socket LGA 1700 Processor threads 32 Stepping B0 Processor special Caratteristiche Enhanced Intel SpeedStep Technology Yes Intel 64 Yes Intel Turbo Boost Max Technology 3.0 Yes Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel? Adaptive Boost Technology Yes Intel? AES New Instructions (Intel? AES-NI) Yes Intel? Boot Guard Yes Intel? Clear Video HD Technology (Intel? CVT HD) Yes Intel? Control-flow Enforcement Technology (CET) Yes Intel? Deep Learning Boost (Intel? DL Boost) on CPU Yes Intel? Gaussian & Neural Accelerator (Intel? GNA) 3.0 Yes Intel? Hyper Threading Technology (Intel? HT Technology) Yes Intel? OS Guard Yes Intel? Quick Sync Video Technology Yes Intel? Secure Key Yes Intel? Speed Shift Technology Yes Intel? Standard Manageability (ISM) Yes Intel? Thermal Velocity Boost Yes Intel? Thermal Velocity Boost Frequency 5,8 GHz Intel? Thread Director Yes Intel? Turbo Boost Max Technology 3.0 frequency 5,6 GHz Intel? Turbo Boost Technology 2.0 Intel? Volume Management Device (VMD) Yes Product dimensions Net Weight (Product kg) 0,89 kg Technical details Launch date Q1'24 OpenCL version 3.0 Status Launched ^ Brand Name Intel * 1 Anno(i) Weight & dimensions Processor package size 45 x 37.5 mm Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria Componenti di sistema Sottocategoria CPU
