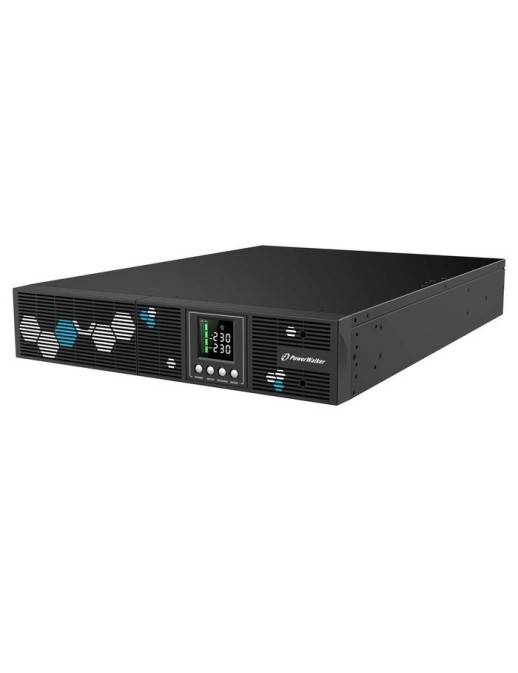

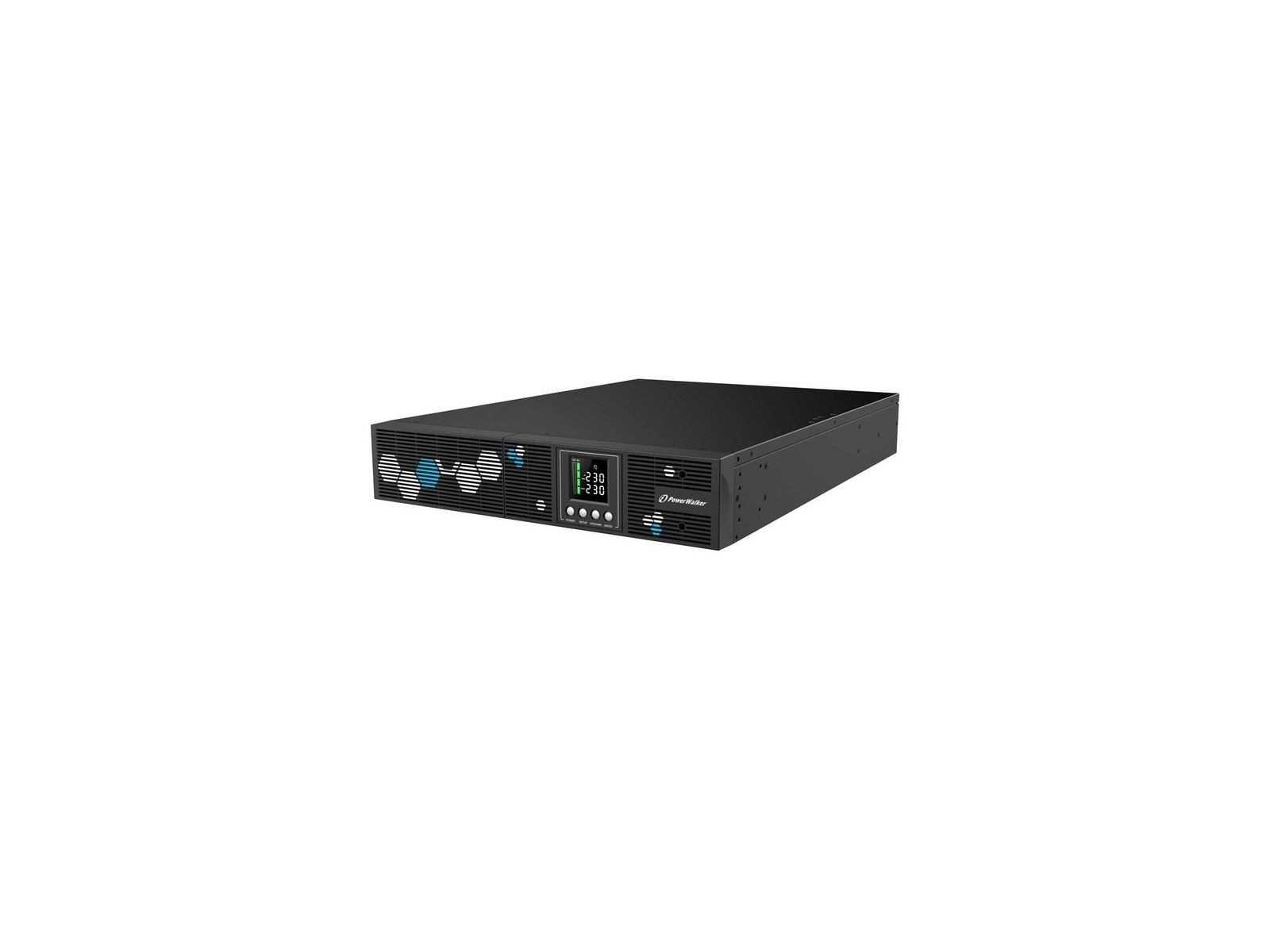

10121202 PowerWalker Capacity: 3000VA / 2700W









10121202 PowerWalker Capacity: 3000VA / 2700W

















Battery Automatic battery test Yes Battery capacity 9 Ah Battery recharge time 4 Hour Battery Type UN3480 - Lithium ION Battery Class 9. Battery voltage 12 V Cold start Yes Number of batteries supported 6 Typical backup time at full load 2,5 min Typical backup time at half load 9 min Design Built-in fan Yes Cooling type Active Display type LCD Form factor Rackmount/Tower International Protection (IP) code IP20 LED indicators Yes Product colour Black Rack capacity 2U Caratteristiche Automatic Voltage Regulation (AVR) Yes Detachable power cord Yes Efficiency (On-line mode) 98,8 % Emergency Power Off (EPO) Yes Input frequency 45/65 Hz Input operation voltage (max) 290 V Input operation voltage (min) 165 V Noise level 45 dB Number of input phases 1 Number of output phases 1 Output frequency regulation 1 Hz Output power 2700 Watt Output power capacity 3 kVA Output voltage regulation 10 % Output voltage Total Harmonic Distortion (THD) 3 % Power protection Caratteristiche Overload Power source type AC Response time 6 Millisecond UPS topology Line-Interactive Waveform Pure sine Legal Information UNSPSC Code (Icecat) 39121011 Operational conditions Operating relative humidity (H-H) 5 - 90 % Operating temperature (T-T) 0 - 40 ?C Other Caratteristiche Nominal output voltage 230 V Package dimensions Depth (package,cm) 74 cm Gross Weight (Package kg) 38,4 kg Height (package,cm) 23,1 cm Width (package,cm) 55,6 cm Packaging data Bundled software PowerMaster Ports & interfaces AC outlets quantity 8 presa(e) AC Emergency Power Off (EPO) connector Yes Power plug C20 coupler Programmable sockets Yes RS-232 ports 1 Serial interface Yes Serial interface type RS-232 SmartSlot Yes USB 2.0 ports quantity 1 USB port Yes USB port type USB Type-B Product dimensions Net Weight (Product kg) 35,8 kg Product Depth 61 cm Product Height 8,8 cm Product Width 43,8 cm Technical details Compliance certificates CE Sustainability compliance Yes ^ Brand Name PowerWalker * 2 Anno(i) Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria UPS e accessori Sottocategoria UPS
