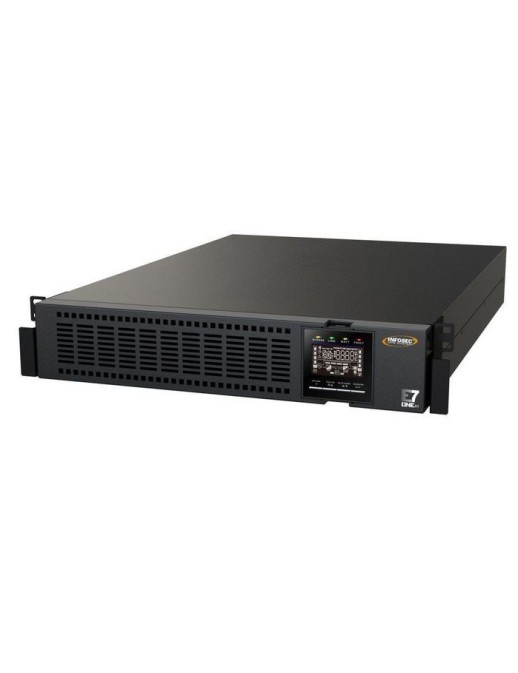

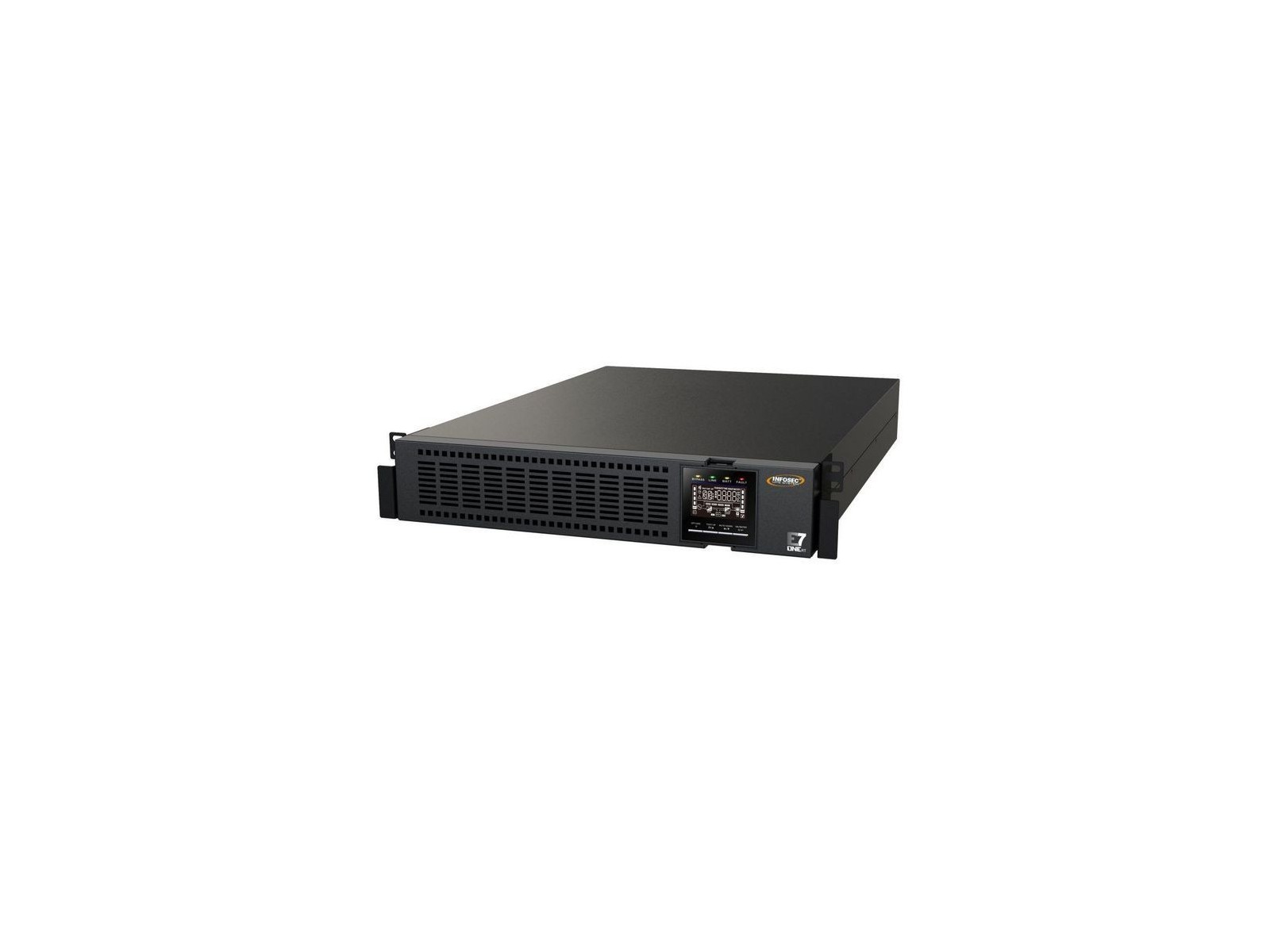

67338 Infosec On Line Double Conversion UPS 10k VA - Terminals -- 2-year warranty -- TUPSE7RT10000









67338 Infosec On Line Double Conversion UPS 10k VA - Terminals -- 2-year warranty -- TUPSE7RT10000









UPS On Line Double Conversion 10k VA - Terminali -- Garanzia di 2 anni -- E7 One RT ? un UPS rack On Line Double Conversion. Con un fattore di potenza pari a 1 questa gamma ? tra le pi? efficienti affidabili ed efficienti della sua categoria.









Battery Battery capacity 9 Ah Battery recharge time 9 Hour Battery Type UN2800 - Batteries wet non-spillable electric storage Battery voltage 12 V Charging current 4 A Cold start Yes Typical backup time at full load 30 min Typical backup time at half load 10 min Design Certification CE Display type LCD Form factor Rackmount/Tower Product colour Black Rack capacity 2U Caratteristiche Audible alarm modes Alarm when on battery/Fault/Low battery alarm/Overload alarm Audible alarm(s) Yes Auto-restart Yes Crest factor 3:1 Efficiency 94 % Emergency Power Off (EPO) Yes Input current Total Harmonic Distortion (THD) 6 % Input frequency 46/64 Hz Input operation voltage (max) 300 V Input operation voltage (min) 110 V Input power factor 0,99 Noise level 58 dB Number of input phases 1 Number of output phases 1 Output frequency 46/64 Hz Output operation voltage (max) 240 V Output operation voltage (min) 208 V Output power 10000 Watt Output power capacity 10 kVA Output power factor 1 Output voltage regulation -1 - 1 % Output voltage Total Harmonic Distortion (THD) 7 % Power protection Caratteristiche Overload/Short circuit Surge protection Yes UPS topology Double-conversion (Online) Waveform Pure sine Legal Information UNSPSC Code (Icecat) 39121011 Operational conditions Operating altitude 0 - 1000 m Operating relative humidity (H-H) 20 - 90 % Operating temperature (T-T) 0 - 40 ?C Package dimensions Gross Weight (Package kg) 90 kg Packaging data Cables included Input power cable/Output power cable/USB cable Manual Yes Rack mount kit Yes Ports & interfaces AC outlet types Terminal Emergency Power Off (EPO) connector Yes Serial interface Yes Serial interface type RS-232 Serial ports quantity 1 SmartSlot Yes USB 2.0 ports quantity 1 USB port Yes USB port type USB Type-B Product dimensions Net Weight (Product kg) 20 kg Product Depth 61 cm Product Height 8,8 cm Product Width 43,8 cm Technical details Compliance certificates RoHS Sustainability certificates RoHS ^ Brand Name Infosec * 2 Anno(i) Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria UPS e accessori Sottocategoria UPS
