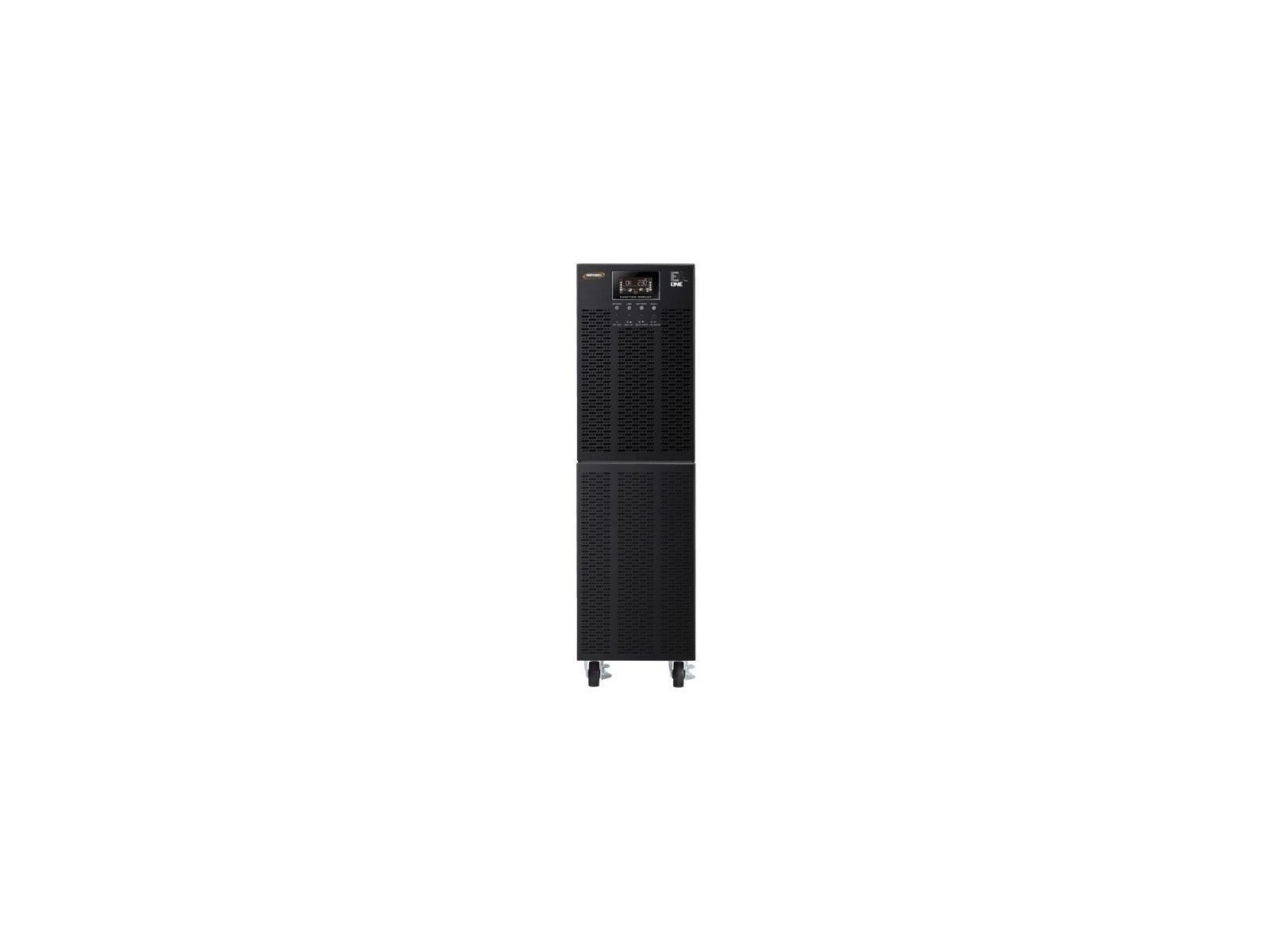

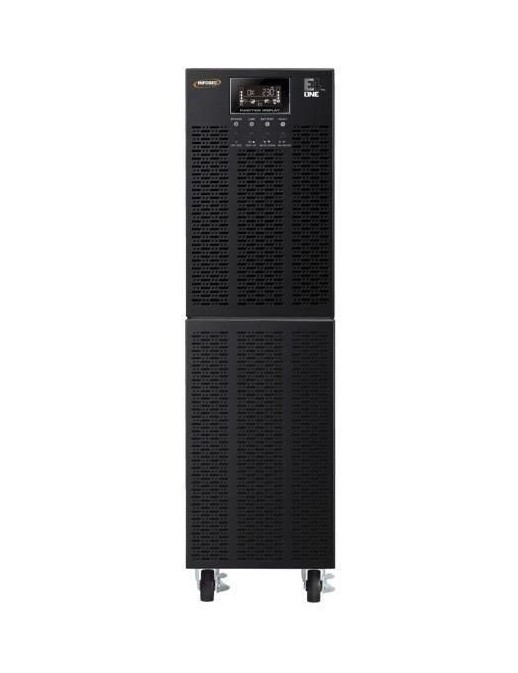

67629 Infosec On Line Double Conversion UPS 5000 VA TUPSE4PRO50









67629 Infosec On Line Double Conversion UPS 5000 VA TUPSE4PRO50









UPS On Line a Doppia Conversione 5000 VGli E4 Pro One sono UPS Tower On Line a Doppia Conversione con Fattore di Potenza 1. Garantiscono una protezione di prima qualit? negli ambienti pi? esigenti dove prestazioni e affidabilit? sono richieste in ogni circostanza.









Battery Battery capacity 9 Ah Battery recharge time 9 Hour Battery Type UN2800 - Batteries wet non-spillable electric storage Battery voltage 12 V Charging current 4 A Typical backup time at full load 30 min Typical backup time at half load 19 min Design Certification CE Display type LCD Form factor Tower Product colour Black Caratteristiche Audible alarm modes Alarm when on battery/Fault/Low battery alarm/Overload alarm Auto-restart Yes Automatic Voltage Regulation (AVR) Yes Crest factor 3:1 Efficiency 94 % Efficiency (ECO mode) 99 % Emergency Power Off (EPO) Yes Input current Total Harmonic Distortion (THD) 6 % Input frequency 46/64 Hz Input operation voltage (max) 300 V Input operation voltage (min) 110 V Input power factor 0,99 Noise level 55 dB Number of input phases 1 Number of output phases 1 Output frequency 46/64 Hz Output operation voltage (max) 240 V Output operation voltage (min) 208 V Output power 5000 Watt Output power capacity 5 kVA Output power factor 1 Output voltage regulation -1 - 1 % Output voltage Total Harmonic Distortion (THD) 4 % UPS topology Double-conversion (Online) Waveform Pure sine Legal Information UNSPSC Code (Icecat) 26111701 Operational conditions Operating altitude 0 - 1000 m Operating relative humidity (H-H) 20 - 90 % Operating temperature (T-T) 0 - 40 ?C Package dimensions Gross Weight (Package kg) 69 kg Packaging data Cables included USB cable Manual Yes Ports & interfaces AC outlet types Terminal Emergency Power Off (EPO) connector Yes Serial interface Yes Serial interface type RS-232 Serial ports quantity 1 SmartSlot Yes USB 2.0 ports quantity 1 USB port Yes USB port type USB Type-B Product dimensions Net Weight (Product kg) 66 kg Product Depth 36,9 cm Product Height 68,8 cm Product Width 19 cm ^ Brand Name Infosec * 2 Anno(i) Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria UPS e accessori Sottocategoria Batterie UPS
