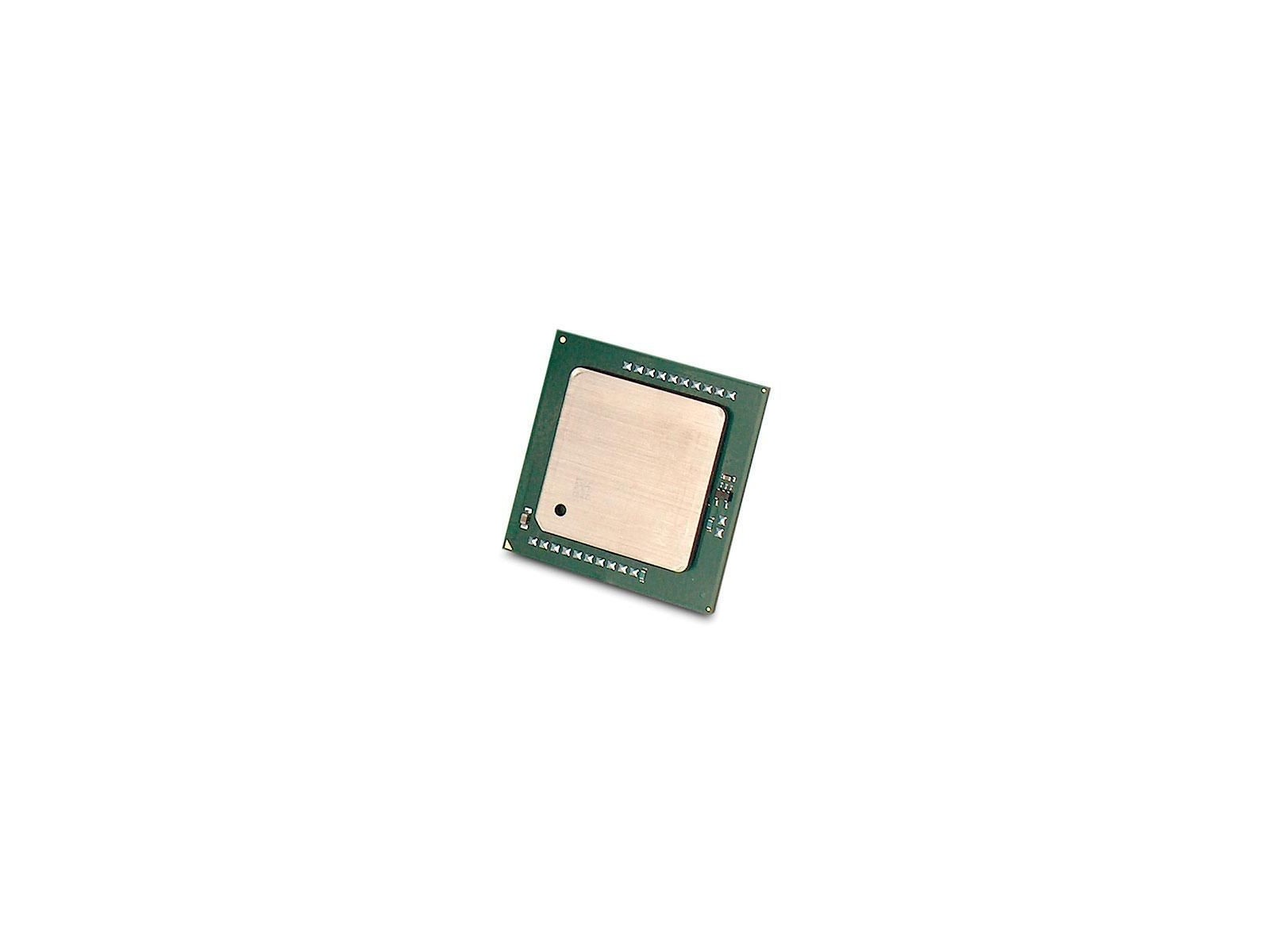

00YE713-RFB Lenovo Intel Xeon Processor E5-2698 v4 20C 2.2GHz 50MB Cache 2400MHz 135W









00YE713-RFB Lenovo Intel Xeon Processor E5-2698 v4 20C 2.2GHz 50MB Cache 2400MHz 135W

















Caratteristiche CPU configuration (max) 2 Embedded options available No Execute Disable Bit Yes Idle States Yes Market segment Server Maximum number of PCI Express lanes 40 PCI Express slots version 3.0 Physical Address Extension (PAE) 46 bit Physical Address Extension (PAE) Yes Scalability 2S Supported instruction sets AVX 2.0 Thermal Monitoring Technologies Yes Graphics On-board graphics card No Legal Information UNSPSC Code (Icecat) 43201503 Memory ECC Yes Maximum internal memory supported by processor 1,5 TB Memory channels Quad-channel Memory clock speeds supported by processor 1600/1866/2133/2400 MHz Memory types supported by processor DDR4-SDRAM Operational conditions Tcase 90 ?C Package dimensions Gross Weight (Package kg) 0,12 kg Processor Bus type QPI Component for Server/workstation Memory bandwidth supported by processor (max) 76,8 GB/s Number of QPI links 2 Processor base frequency 2,2 GHz Processor boost frequency 3,6 GHz Processor cache 50 MB Processor cache type Smart Cache Processor cores 20 Processor family Intel? Xeon? E5 v4 Processor lithography 14 nm Processor model E5-2698V4 Processor operating modes 64-bit Processor series Intel Xeon E5-2600 v4 Processor socket LGA 2011-v3 Processor threads 40 Stepping B0 System bus rate 9,6 GT/s Thermal Design Power (TDP) 135 Watt Processor special Caratteristiche Conflict-Free processor Yes Enhanced Intel SpeedStep Technology Yes Intel 64 Yes Intel Demand Based Switching Yes Intel Flex Memory Access No Intel Trusted Execution Technology Yes Intel TSX-NI Yes Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel? AES New Instructions (Intel? AES-NI) Yes Intel? Hyper Threading Technology (Intel? HT Technology) Yes Intel? Identity Protection Technology (Intel? IPT) No Intel? OS Guard Yes Intel? Secure Key Yes Intel? Turbo Boost Technology 2.0 Intel? vPro? Platform Eligibility Yes Product dimensions Net Weight (Product kg) 0,1 kg ^ Brand Name Lenovo * 1 Anno(i) Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria Componenti di sistema Sottocategoria CPU
