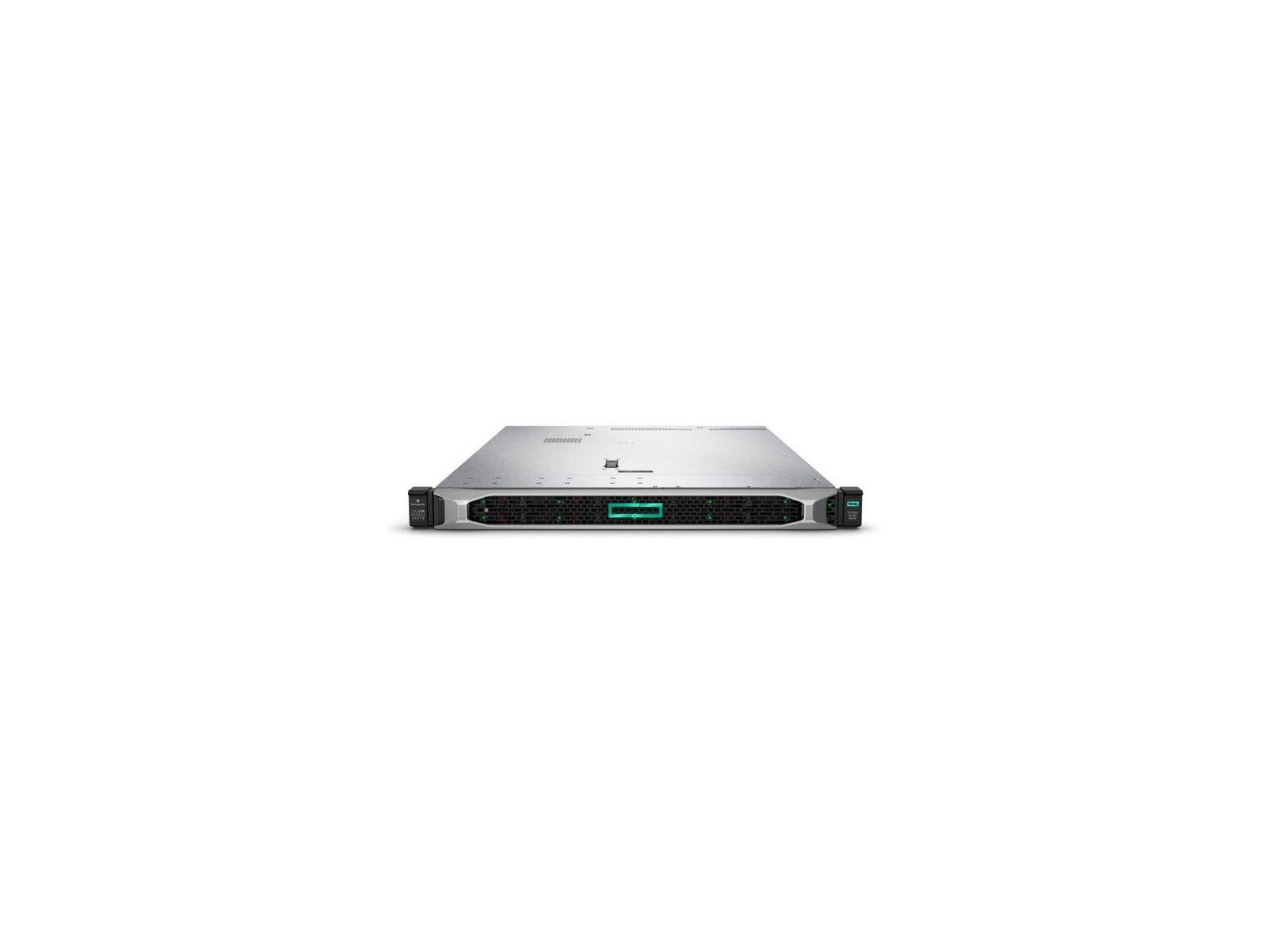

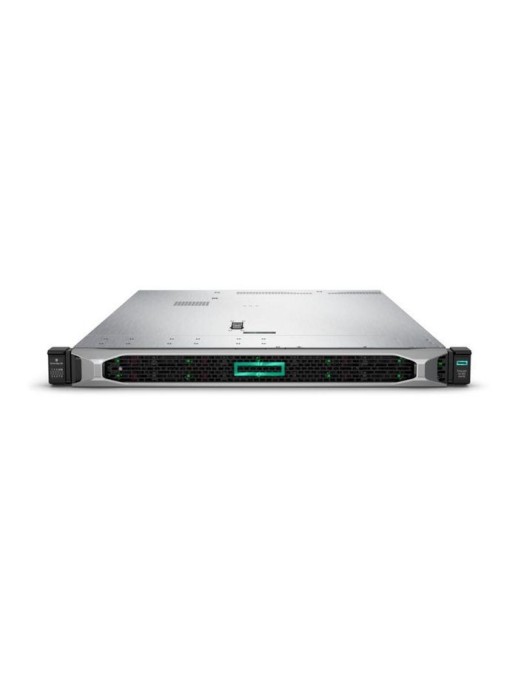

P03633-B21 Hewlett Packard Enterprise Intel Xeon Gold 5218 (22M Cache, 2.30 GHz), 32 GB RDIMM, Smart Array P408i-a/2 GB, 1 x 800









P03633-B21 Hewlett Packard Enterprise Intel Xeon Gold 5218 (22M Cache 2.30 GHz) 32 GB RDIMM Smart Array P408i-a/2 GB 1 x 800 W

















Battery Battery Type UN3091 - Lithium METAL inside equiment Lithium Weight (g) 0,064 g Certificates Energy Star certified Yes Design Chassis type Rack (1U) Optical drive type N Product colour Black/Silver Product series ProLiant DL Rack mounting Yes Redundant fans support Yes Expansion slots PCI Express slots version 3.0 Graphics On-board graphics card model Not available Legal Information EU ECCN Code N/A UNSPSC Code (Icecat) 43211501 US ECCN Code 5A992 Logistics data Harmonized System (HS) code 84714100 Memory Internal memory 32 GB Internal memory type DDR4-SDRAM Maximum internal memory 768 GB Memory layout (slots x size) 1 x 32 GB Memory slots 24x DIMM Network Ethernet interface type Gigabit Ethernet Ethernet LAN Yes Package dimensions Gross Weight (Package kg) 15,2 kg Performance Harmonized System (HS) code 84714100 Ports & interfaces Ethernet LAN (RJ-45) ports 4 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 5 VGA (D-Sub) ports quantity 1 Power Number of redundant power supplies installed 1 Power supply 800 Watt Redundant power supply (RPS) support Yes Processor Embedded options available No Execute Disable Bit Yes Maximum internal memory supported by processor 1 TB Maximum number of PCI Express lanes 48 Memory clock speeds supported by processor 2667 MHz Memory types supported by processor DDR4-SDRAM Number of processors installed 1 Processor boost frequency 3,9 GHz Processor cache 22 MB Processor codename Cascade Lake Processor cores 16 Processor family Intel? Xeon? Gold Processor frequency 2,3 GHz Processor generation 2nd Generation Intel? Xeon? Scalable Processor lithography 14 nm Processor manufacturer Intel Processor model 5218 Processor operating modes 64-bit Processor package size 76.0 x 56.5 mm Processor socket LGA 3647 (Socket P) Processor threads 32 Scalability 4S Supported instruction sets AVX-512 Tcase 87 ?C Thermal Design Power (TDP) 125 Watt Processor special Caratteristiche Enhanced Intel SpeedStep Technology Yes Intel 64 Yes Intel Trusted Execution Technology Yes Intel TSX-NI Yes Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel? AES New Instructions (Intel? AES-NI) Yes Intel? Hyper Threading Technology (Intel? HT Technology) Yes Intel? Turbo Boost Technology 2.0 Processor ARK ID 192444 Product dimensions Net Weight (Product kg) 15,1 kg Product Depth 70,7 cm Product Height 4,29 cm Product Width 43,46 cm Software Compatible operating systems CentOS/ClearOS/Red Hat Enterprise Linux (RHEL) 6.9 & 7.3/SUSE Linux Enterprise Server (SLES) 11 SP4 & 12 SP2/VMware ESXi 6.0 U3/VMware ESXi 6.5 & U1/Windows Server 2012 R2/Windows Server 2016 Operating system installed No Storage HDD interface Serial ATA/Serial Attached SCSI (SAS) HDD size 2.5 " Hot-Plug support Yes Maximum storage capacity 22 TB Number of HDDs supported 8 Optical drive type No RAID levels 0/1/10/5/50/6/60 RAID support Yes Technical details Sustainability certificates ENERGY STAR ^ Brand Name Hewlett Packard Enterprise * 1 Anno(i) Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria Server Sottocategoria Server
