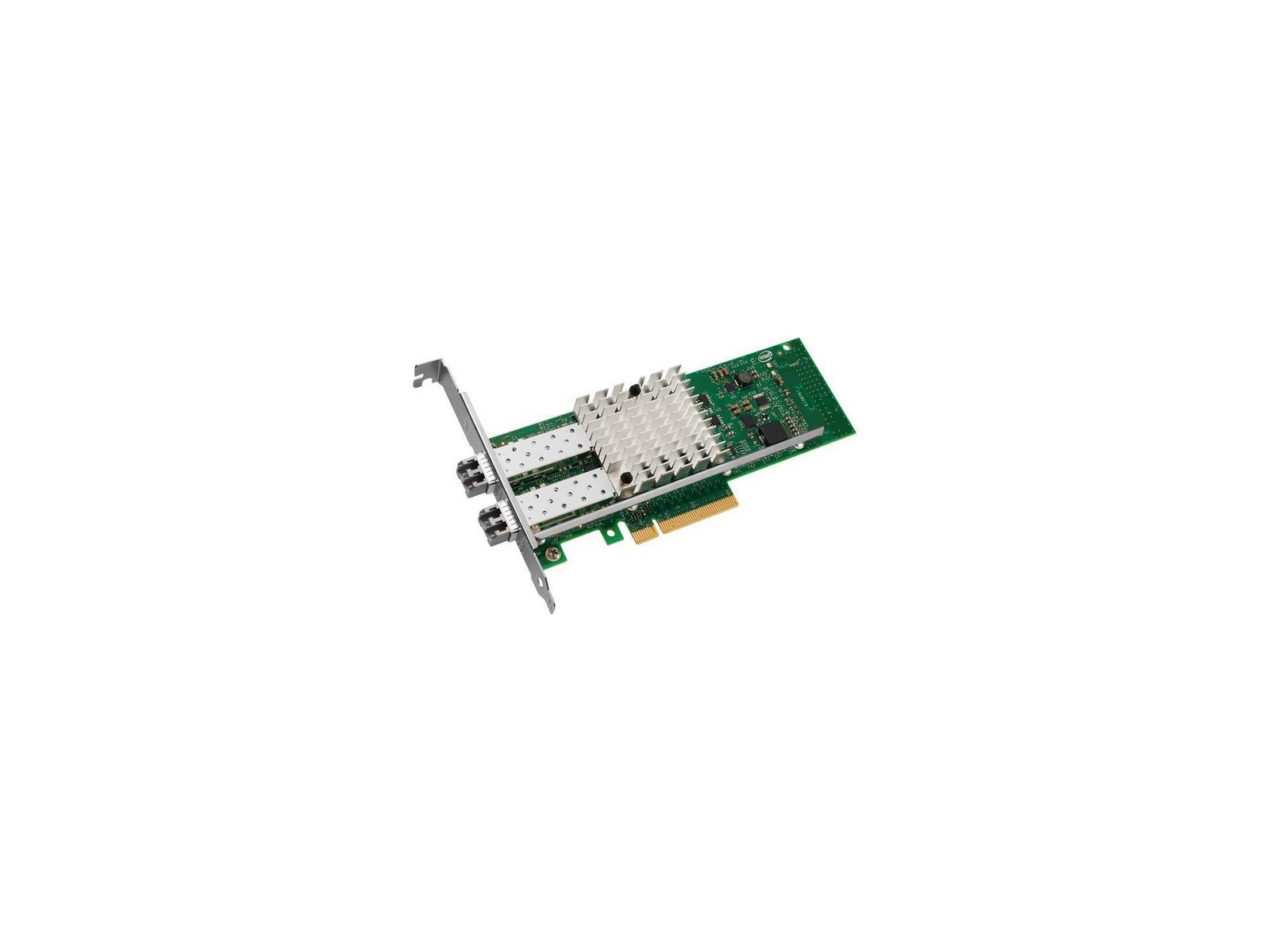

E10G42BFSR-RFB Intel Dual Port 10Gb X520-Sr2 Ethernet Adapter









E10G42BFSR-RFB Intel Dual Port 10Gb X520-Sr2 Ethernet Adapter

















Design Certification FCC B UL CE VCCI BSMI CTICK KCC Internal Yes Plug and Play Yes Legal Information UNSPSC Code (Icecat) 43201404 Logistics data Harmonized System (HS) code 85176990 Network Ethernet LAN data rates 10/1000 Mbit/s Fiber mode structure Multi-mode Full duplex Yes LAN controller Intel? 82599 Maximum data transfer rate 10000 Mbit/s Maximum operating distance 300 m Operational conditions Operating temperature (T-T) 0 - 55 ?C Storage temperature (T-T) -40 - 70 ?C Other Caratteristiche Born on date Q3'09 Bracket height Low-Profile (LP) / Full-Height (FH) Cable type MMF up to 300m Cabling type MMF up to 300m Commodity Classification Automated Tracking System (CCATS) G135872 Compliance industry standards IEEE 802.3 Controller type Intel? 82599 10 Gigabit Ethernet Controller Data transfer rate 10 Gbit/s Ethernet adapter ARK ID 39774 Export Control Classification Number (ECCN) 5A992C Fiber Channel over Ethernet Yes Intel Data Direct I/O Technology Yes Intel Flexible Port Partitioning Yes Intel Virtual Machine Device Queues (VMDq) Yes Intel Virtualization Technology for Connectivity (VT-c) Yes Intelligent Offloads Yes Interface type PCIe v2.0 (5.0 GT/s) iWARP/RDMA No Last change 64826814 Launch date Q3'09 Link/Act LED Yes Low halogen options available No Market segment Server Message signal interrupt Yes Network interface card cable medium Fiber Network interface card type Server On-chip QoS and Traffic Management Yes PCI-SIG* SR-IOV Capable Yes Ports quantity 2 Processor family 500 Network Adapters (up to 10GbE)-500 Network Adapters (up to 10GbE) Product brief URL https://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x520-server-adapters-brief.html Product codename Spring Fountain Product family Intel 10 Gigabit server adapter Product name Intel Ethernet Converged Network Adapter X520-SR2 Product series 500 Series Network Adapters (up to 10GbE) Product type Network Interface Card Speed & slot width 5.0 GT/s x8 Lane Status Launched Storage Over Ethernet iSCSI FCoE NFS Thermal Design Power (TDP) 10,7 Watt Package dimensions Gross Weight (Package kg) 0,25 kg Ports & interfaces Connectivity technology Wired Ethernet LAN (RJ-45) ports 2 Host interface PCI Express PCI version 2.0 Product dimensions Net Weight (Product kg) 0,2 kg Product Width 14,55 cm System requirements Compatible operating systems https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html ^ Brand Name Intel * 1 Anno(i) Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria Componenti di sistema Sottocategoria Schede di rete
