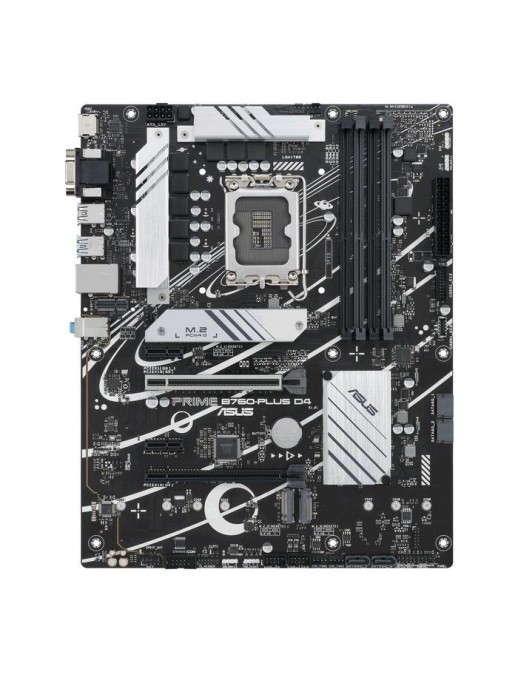

90MB1CW0-M0EAY0 Asus Prime B760-Plus D4 Intel B760 Lga 1700 Atx









90MB1CW0-M0EAY0 Asus Prime B760-Plus D4 Intel B760 Lga 1700 Atx

















Battery Battery Type UN3091 - Lithium METAL inside equiment Lithium Weight (g) 0,064 g BIOS BIOS memory size 128 Mbit BIOS type UEFI AMI Expansion slots Number of M.2 (M) slots 3 PCI Express x1 (Gen 3.x) slots 2 PCI Express x16 (Gen 4.x) slots 1 PCI Express x16 (Gen 5.x) slots 1 Caratteristiche Audio output channels 7.1 canali Component for PC Cooling type Passive Motherboard chipset Intel B760 Motherboard chipset family Intel Motherboard form factor ATX Power source type ATX Windows operating systems supported Windows 10/Windows 11 Graphics Parallel processing technology support Not supported Internal I/O 12V power connector Yes ATX Power connector (24-pin) Yes CPU fan connector Yes EPS power connector (8-pin) Yes Front panel audio connector Yes Front panel connector Yes Number of chassis fan connectors 3 Number of COM connectors 1 Number of SATA III connectors 4 Peripheral (Molex) power connectors (4-pin) 1 RGB LED pin header Yes S/PDIF out connector Yes Thunderbolt headers 1 TPM connector Yes USB 2.0 connectors 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors 2 Legal Information UNSPSC Code (Icecat) 43201513 Memory ECC ?ompatibility Non-ECC Maximum internal memory 128 GB Memory channels Dual-channel Memory slots type DIMM Non-ECC Yes Number of memory slots 4 Supported memory clock speed (max) 5066 MHz Supported memory clock speeds 2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/4000/4266/4400/4600/4800/5000/5066 MHz Supported memory types DDR4-SDRAM Unbuffered memory Yes Network Ethernet interface type 2.5 Gigabit Ethernet Ethernet LAN Yes Wi-Fi No Other Caratteristiche Number of M.2 (E) slots 1 Package dimensions Depth (package,cm) 26,6 cm Gross Weight (Package kg) 1,3 kg Height (package,cm) 5,3 cm Width (package,cm) 32,8 cm Packaging content Cables included SATA User guide Yes Processor Compatible processor series Intel? Celeron?/Intel? Core? i3/Intel? Core? i5/Intel? Core? i7/Intel? Core? i9/Intel? Pentium? Gold Maximum number of SMP processors 1 Processor manufacturer Intel Processor socket LGA 1700 Supported processor sockets LGA 1700 Product dimensions Net Weight (Product kg) 1 kg Product Depth 24,4 cm Product Width 30,5 cm Rear panel I/O ports DisplayPort version 1.4 DisplayPorts quantity 1 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 HDMI version 2.1 Headphone outputs 1 Line-in Yes USB 2.0 ports quantity 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2 USB 3.2 Gen 2x2 Type-C ports quantity 1 VGA (D-Sub) ports quantity 1 Storage controllers Number of HDDs supported 4 Number of storage drives supported 7 RAID levels 0/1/10/5 RAID support Yes Supported storage drive interfaces M.2/SATA III Supported storage drive types HDD & SSD ^ Brand Name Asus * 1 Anno(i) Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria Componenti di sistema Sottocategoria Schede madre
